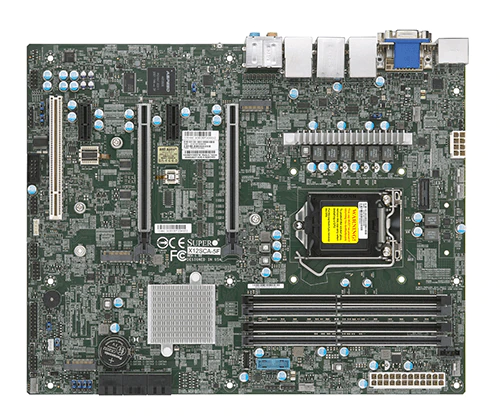

Product Overview

Key Features 11th Generation Intel® Core¿ i5/i7/i9 Processors, Intel® Xeon® W-1300 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP Intel® W580 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1 1 - 5V PCI 32bit M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1 M.2 Form Factor: 2280/22110 M.2 Key: M-Key RAID 5 only applied for INTEL Storage Device Single LAN with Intel® Ethernet i225LM Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro Single LAN with Dedicated LAN for IPMI 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots Intel® W580 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port, 1 VGA port
