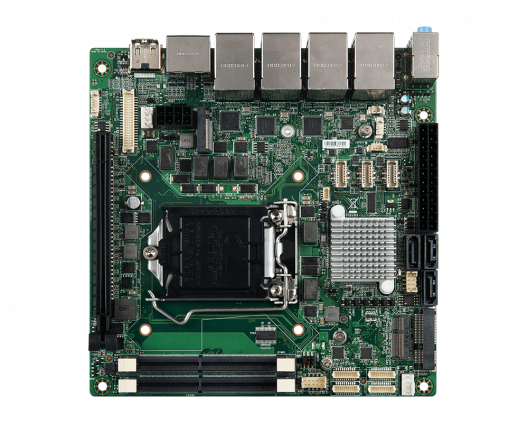

Product Overview

Intel® 8th/9th Gen Coffee Lake-S/Coffee Lake Refresh-S Series with C246/Q370/H310 2 DDR4 2666 MHz ECC/non-ECC SODIMM slots up to 64GB Triple independent displays: 2DP, HDMI (DP by option), LVDS 4 GbE LAN with RJ-45 1 PCIe x16 (Gen 3) Slot, M.2 E key (with CNVi), 1 Mini-PCIe (Full size, with SIM Holder) slots M.2 M key, 3 SATA 3.0 for storage SATA RAID 0/1/5/10 (RAID 10 Configured with M.2 M Key) 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio, S/PDIF, System FAN Onboard TPM 2.0 (by option) SMBus, iAMT 12.x ATX Power
