Product Overview
Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors Intel® C621A Chipset 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane¿ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane¿ Persistent Memory 200 series AIOM/OCP 3.0 Support 10 PCIe Gen 4.0 X16 LP Slots Flexible networking options 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays 2 M.2 NVMe and SATA for boot drive only
Specifications

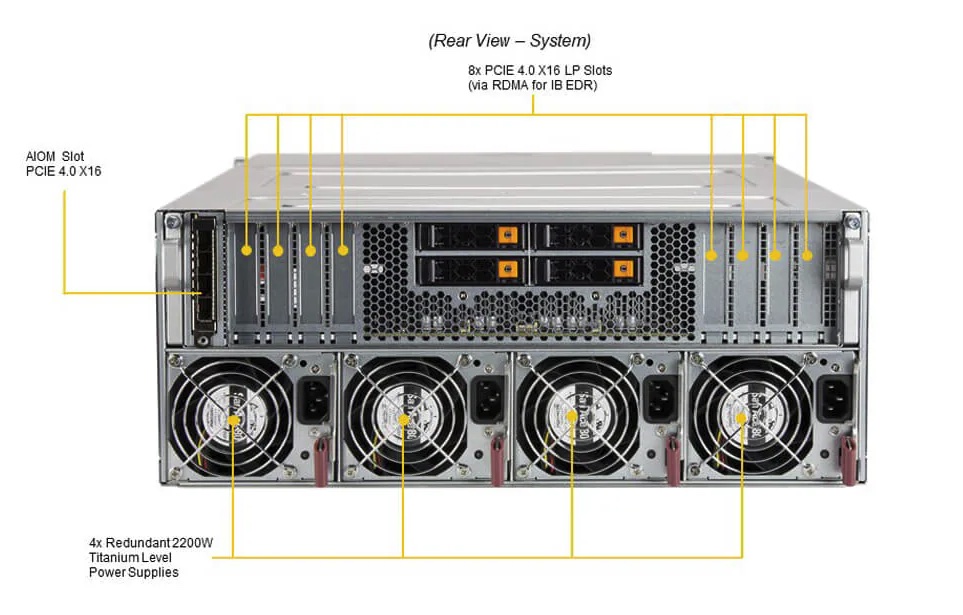

SYS-420GP-TNAR
1x SYS-420GP-TNAR, MBD-X12DGO-P, 4U 8xSXM4 GPU
P4X-ICX6338N-SRKY2
2x ICX 6338N 2P 32C/64T 2.2G 48M 11.2GT 185W 4189 D2
MEM0DR464MC-ER32
32x 64GB DDR4-3200 2Rx4 (16GB) RDIMM
HDS-M2T0-480G0-L2-TXD-NON-080
2x SSD M.2 SATA 480GB < 2DWPD TLC D, 80mm
HDS-25N4-003T8-E1-TXD-NON-015
4x SSD 2.5" NVMe PCIe4 3.8TB 1DWPD TLC D, 15mm
AOC-ATG-I2TM-O
1x AIOM 2-port 10GBase-T, INtel X550, RoHS
AOC-653105A-HDAT
7x MCX653105A-HDAT, CX-6 VPI, HDR, 200GbE, 1xQSFP56, PCIe4x16
AOC-653106A-HDAT
1x MCX653106A-HDAT, CX-6 VPI, HDR, 200GbE, 2P, QSFP56, PCIe4x16
GPU-NVTHGX-A100-SXM4-88D
1x NVIDIA Air Cool DELTA HGX GPU Baseboard, 8x A100 80GB
