Product Overview
Dual Intel® Xeon® 6900 series processors with P-cores, up to 500W TDP, 6UPI Supports 8 onboard SXM B200 GPU accelerators 24 DIMM slots, ECC RDIMM / MRDIMM DDR5, up to 6400MT/s (1DPC only) 2 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI 10 PCIe 5.0 x16 LP and 2 PCIe 5.0 x16 FHHL 10 PCIe 5.0 NVMe U.2 and 2 NVMe M.2
Specifications

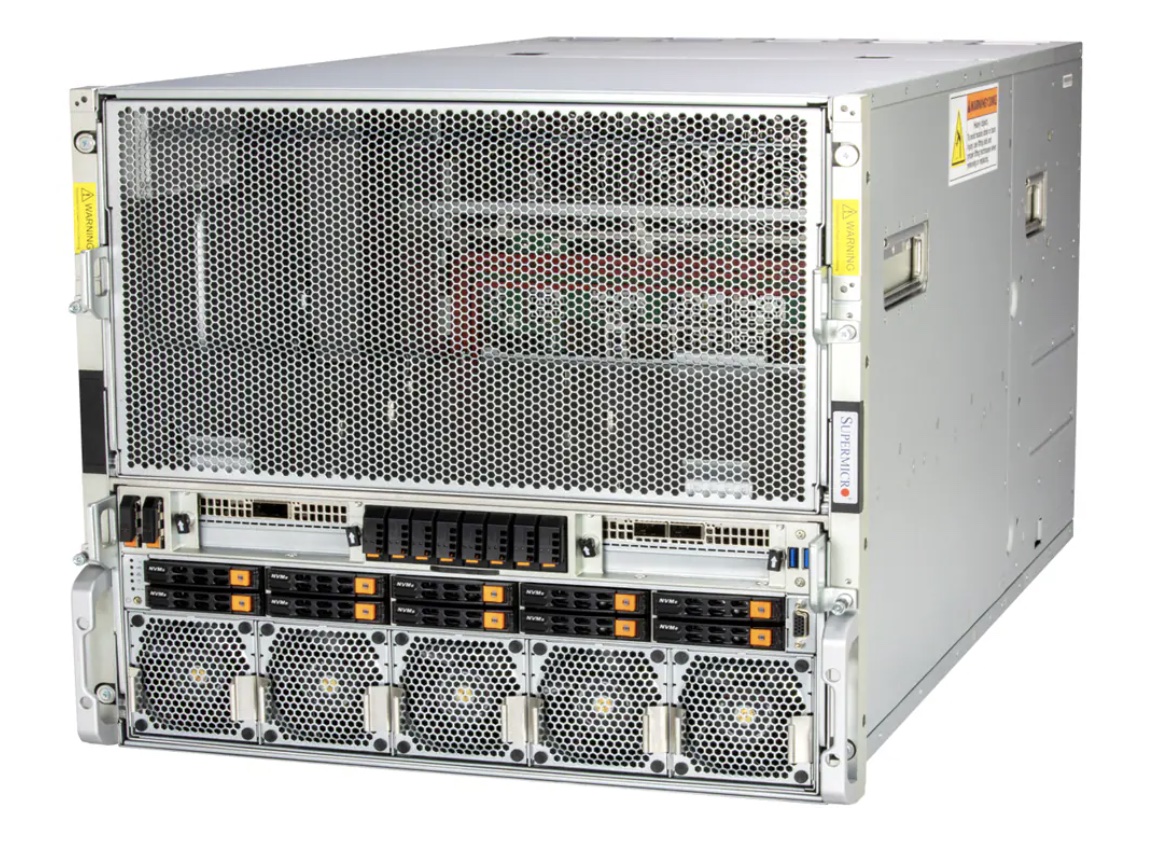

SYS-A22GA-NBRT
[NR] 10U X14 HGX 8GPU (Rear 1/0), X14DBG-DAP, CSE-GP 1001TS
P4X-GNR6972P-SRPKY-UCC
2x CPU GNR-AP 6972P 2P 96C (2.4G/500W, 2G/400W) 480M S512 4xDIQD
MEM-DR512L-SL01-ER64
24x 128GB DDR5-6400 2Rx4 LP (32Gb) ECC RDIMM,HF, ROHS
HDS-SMNO-MZ1L21T9HCLSA7
2x Samsung PM9A3 1.92TB NVMe PCle4x4 M2. 22x110mm 1DWPD SED 5YR
HDS-SUNO-MZQL23T8HCLSA7
8x Samsung PM9A3 3.8TB NVMe PCle4x4 U.2 7mm 1DWPD 5YR SED Opal
AOC-CX766003N-SQO
8x 900-9X766-003N-SQO 1-p NDR 400G IB/ETH OSFP Crypto Disabled
GPU-NVDPU-BA3220
2x [NR]Nvidia BF3 DPU 200G dual-port PCle Gen5 Crypto Disabled
GPU-NVHGX-B200-8180
INRINVIDIA Umbriel GPU Baseboard, HGX B200 8-GPU 180GB HBM3e
