Product Overview

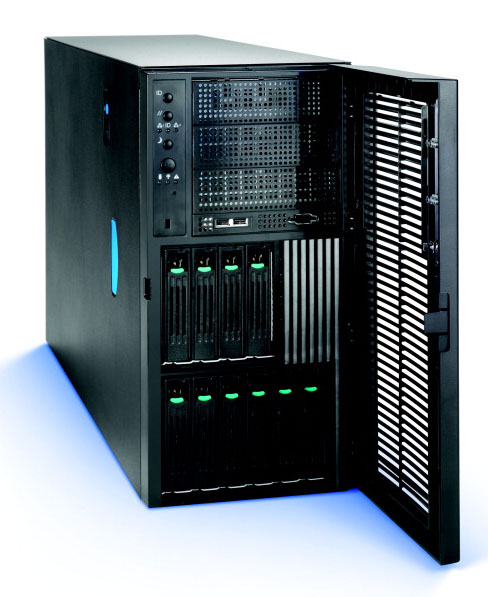

Black Pedestal - H 16.9", W 8.6", D x 27.9" 600W Fixed Power Supply Available in pedestal and 5U rack-mount configurations Two front USB ports, one front serial port Two high-flow system fans and one power-supply fan per power supply Up to three at 5.25" (1.75" height) external peripheral bays One 5.25" bay can be used for 3.5 floppy Upgradeable to support six SATA or Ultra320 SCSI hot-swap drives or ten SCSI total
Specifications
Model
Intel® Sever Chassis SC5300
Form Factor
Pedestal or 5U Rack-Mount Server Server Standards Infrastructure (SSI) Entry E-Bay 3.5 compatible
Pedestal
16.9" (height) x 8.6" (width) x 27.9" (depth) (429 mm x 218 mm x 709 mm) Black (Intel Color Standard GE 701)
Rack-Mount Server
5U 8.6" (height) x 16.7" (width) x 27.4" (depth) (218 mm x 424 mm x 696 mm) Black (Intel Color Standard GE 701)
Hard-Drive-Bay Support
Up to six2 fixed SATA, Ultra320 SCSI3, or IDE (one-inch height)
Hot-Swap Drive Bay Upgrade Support
Upgradable to support six SATA or Ultra320 SCSI (one-inch height) hot-swap hard drives³
SCSI Backplane
LVD with SAF-TE
External Peripheral Bays
Up to three at 5.25" (1.75" height)
SC5300BASE
One 120mm and one 92mm fan positioned for main chassis cooling that can be monitored by Intel® Server Management7; both system fans instrumented to provide RPM data for fan-failure prediction and detection; one 80mm fan for power-supply cooling
DC Power Supply
600W PFC
Buttons and Switches
Power on/off (momentary) button, system-reset button, ACPI sleep5 switch, tool-activated NMI switch
LEDs
Power, hard-drive activity, network activity (two), system ID, general system status
Connectors
Two USB ports, one serial port
