Product Overview

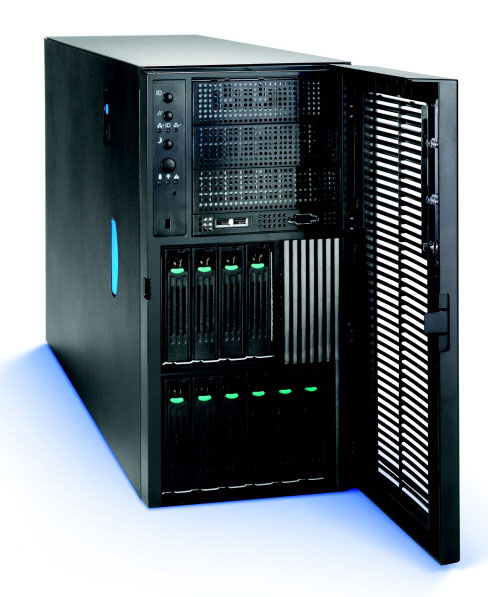

Black Pedestal - H 16.9", W 8.6", D x 27.9" 730W(1+1) Fixed Power Supply & Cooling Model Available in pedestal and 5U rack-mount configurations Two front USB ports, one front serial port Two high-flow system fans and one power-supply fan per power supply Up to three at 5.25" (1.75" height) external peripheral bays One 5.25" bay can be used for 3.5 floppy Upgradeable to support six SATA or Ultra320 SCSI hot-swap drives or ten SCSI total
Specifications
Model
SC5300LX
Form Factor
Pedestal or 5U Rack-Mount Server Server Standards Infrastructure (SSI) Entry E-Bay 3.5 compatible
Pedestal
16.9" (height) x 8.6" (width) x 27.9" (depth) (429 mm x 218 mm x 709 mm) Black (Intel Color Standard GE 701)
Rack-Mount Server
5U 8.6" (height) x 16.7" (width) x 27.4" (depth) (218 mm x 424 mm x 696 mm) Black (Intel Color Standard GE 701)
Hard-Drive-Bay Support
Up to six fixed SATA, Ultra320 SCSI3, or IDE (one-inch height)
Hot-Swap Drive Bay Upgrade Support
Upgradable to support an additional four fixed hard drives or a combination of a six-drive SATA drive bay, a six-drive hot-swap Ultra320 SCSI drive bay, and a four-drive hot-swap Ultra320 SCSI drive bay for a total of 10 fixed or hot-swap hard drives
SCSI Backplane
LVD with SAF-TE
External Peripheral Bays
Up to three at 5.25" (1.75" height)
System Cooling
Two 120mm and two 92mm hot-swap redundant² fans providing cooling for the processors, hard drives, and add-in cards that can be monitored by Intel® Server Management7 for fail-over capability;
DC Power Supply
730W PFC, dual-line cord 1+1 redundant-power-capable3
