Evercase R9138B2, 1U RM, 2x 3.5" HDD+1x Slim CD Bays, 200W P.S
Starting atContact Sales
to 12" X 10.5". Accept ATX or Micro ATX single CPU motherboard. Many rear panels to choose from to fit different motherboards. Capable of 1 full height PCI card (requires optional riser card, 32bits or 64bits). Special design for better system cooling. Selections of the power supplies ranging from 200w to 400w.
Evercase R9138B2, 1U RM, 2x 3.5" HDD+1x Slim CD Bays, 300W P.S
Starting atContact Sales
to 12" X 10.5". Accept ATX or Micro ATX single CPU motherboard. Many rear panels to choose from to fit different motherboards. Capable of 1 full height PCI card (requires optional riser card, 32bits or 64bits). Special design for better system cooling. Selections of the power supplies ranging from 200w to 400w.
FALPASMP, SR2500 (2U) Passive Midplane.
Starting atContact Sales
SR2500 (2U) Passive Midplane. Compatible with either SAS or SATA hard drives. Kit contents include the following: Passive mid-plane with pass-through capabilities for either onboard SATA ports or a SAS/SATA add-in card, enclosure management (i2C) cable, NOTE: no SATA cables are included
FALSASMP, SR2500 (2U) SAS Midplane with optional Intel Integated Server RAID. 8 Port SAS controller
Starting atContact Sales
SR2500 (2U) SAS Midplane with optional Intel Integated Server RAID. 8 Port SAS controller with optional HW RAID upgrade. NOTE: RAID requires RAID activation key and RAID DIMM (cache) each sold separately.

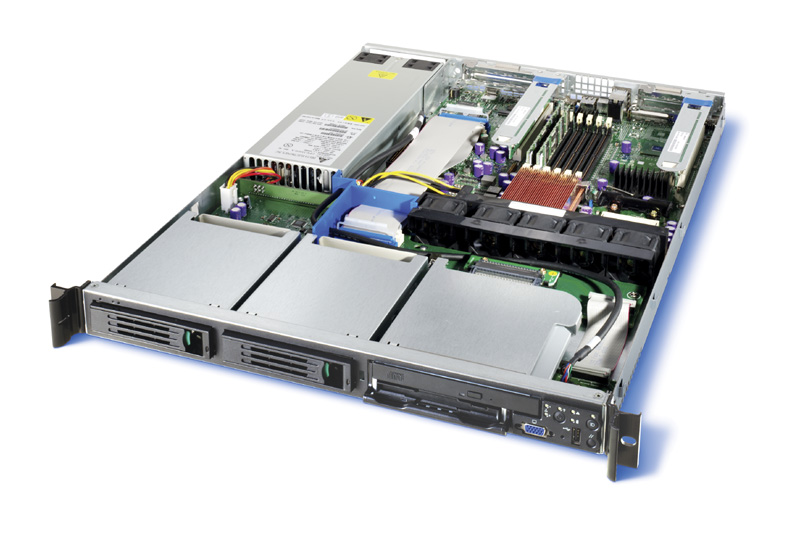

Intel SR1300 1U Server Chassis, w/350W P.S
Starting atContact Sales
Innovative, 1U Rack-Optimized Server Chassis for Reliable High-Density Solutions High-density rack-mount servers are emerging as one of the strongest segments in the entry-level server space. Their thin design saves space and simplifies the installation, operation, and maintenance of co-located systems. The new Intel® Server Chassis SR1300 provides an ideal foundation for such systems, helping businesses to meet the challenges of consolidating front-end and general-purpose servers.
Intel SR1400, Up to 3 HS Bays, 1U RM Server Chassis, w/500W P.S
Starting atContact Sales
A flexible, 1U rack-optimized chassis for performance-intensive solutions and high-density clusters Working in space-constrained environments presents a special challenge to the business, department, or workgroup seeking a powerful and reliable server chassis solution. That challenge requires the blending of performance, reliability, and scalability features with management, power, storage, and cooling options designed specifically for rack-mount configurations in close quarters. For organizations facing the challenge of working in a space-constrained environment, Intel offers the Intel® Server Chassis SR1400.
Intel SR1500NA, 1U RM, 3x HS SATA/SAS+1x Slim CD Drive Bays, 600W P.S
Starting atContact Sales
Designed and validated for S5000PAL. Pedestal. 1U. Supports up to (3) 3.5"drives - SATA or SAS (requires hot-swap upgrade kit). Optional slim-line CD or USB bay. Option for integrated SAS with optional S/W RAID 5 upgrade. Single 600W power supply. Supports Intel Local Control Panel. 16.9" width x 1.703" height x 27.25" depth (32" with CMA). North American Power cable included. BLACK ONLY
Intel SR2400, 2U RM, 6x HS SATA, 1x Slim/FDD Bays, 700W(1+1) P.S
Starting atContact Sales
A flexible and serviceable 2U rack-optimized chassis for performance-intensive and storage-demanding solutions Space-constrained server environments pose challenges to businesses running e-mail, Internet, database, other demanding server applications. To help ensure reliability, server components must be rigorously validated with one another before deployment. To maintain performance and availability requires special attention to heat and power. Administration and management features must be made easily accessible, and maintenance and support must be simplified. To meet the needs of businesses facing such concerns, Intel has applied its wealth of experience and technological leadership to the development of the Intel® Server Chassis SR2400.
Intel SR2500NA, 2U RM, 6x HS SATA/SAS+1x Slim CD Drive Bays, 750W P.S
Starting atContact Sales
Designed and validated for S5000PAL. Pedestal. 2U. Supports up to (6) 3.5"drives - SATA or SAS (requires hot-swap upgrade kit). Optional slim-line CD or USB bay. Option for integrated SAS with optional S/W RAID 5 upgrade. Upgrade Optional hotswap drives (SAS/SATA) with RAID 5 option. 750W 1+0 PFC power supply. Optional hot swap and redundant power (requires second module). Supports Intel Local Control Panel. 3.45" height x 16.93 width x 26.46" depth. North American Power cable included. BLACK ONLY
Supermicro CSE-LB13AC2-R860AW,1U RM,WIO(2x FH/FL Slots),8x HS 2.5" SAS3(12Gb/s)/NVMe Bays,R860W(1+1)
Starting atContact Sales
Key Features SAS3 12Gb/s and NVMe support 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4" 8 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay SAS or enterprise SATA HDD only recommended 1U SAS/SATA Backplane with SES2 support 1U 860W Redundant power supply Platinum level, 24Pin output 2x full-height & full-length expansion slot(s) 2x S-AIOM expansion slot(s) 4 x 40x56mm counter-rotation PWM fan(s)by default, 2 x as optional Support optional 1x Slim SATA DVD or 1x 2.5" HDD with DVD dummy tray kit Support Service Tag for system information

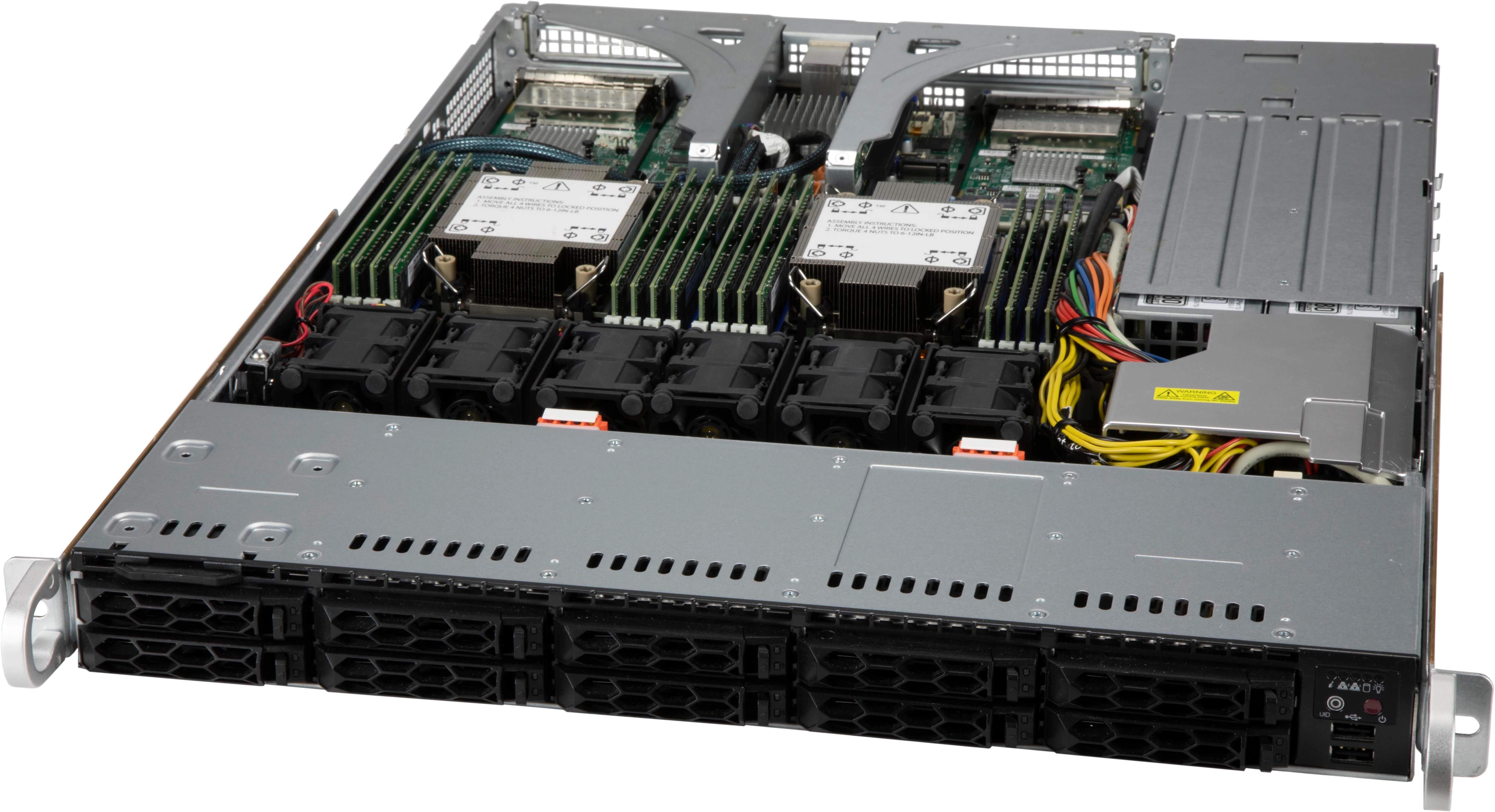

Supermicro CSE-LB16AC10-R860AW,1U RM,WIO, 10x HS 2.5" SAS3(12Gb/s) or NVMe Bays,2x FH/FL Slots,R860W
Starting atContact Sales
Key Features SAS3 12Gb/s and NVMe support 1U Optimized for CloudDC motherboard with S-AIOM support, support MB size up to 12.3" x 13.4" 10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay SAS or enterprise SATA HDD only recommended 1U 10-Slot SFF Backplane Supports SAS3/SATA3/NVMe 1U 860W Redundant power supply Platinum level, 24Pin output 2x full-height & full-length expansion slot(s) 2x AIOM expansion slot(s) 4 x 40x56mm counter-rotation PWM fan(s) by default, 2 x as optional Support Service Tag for system information

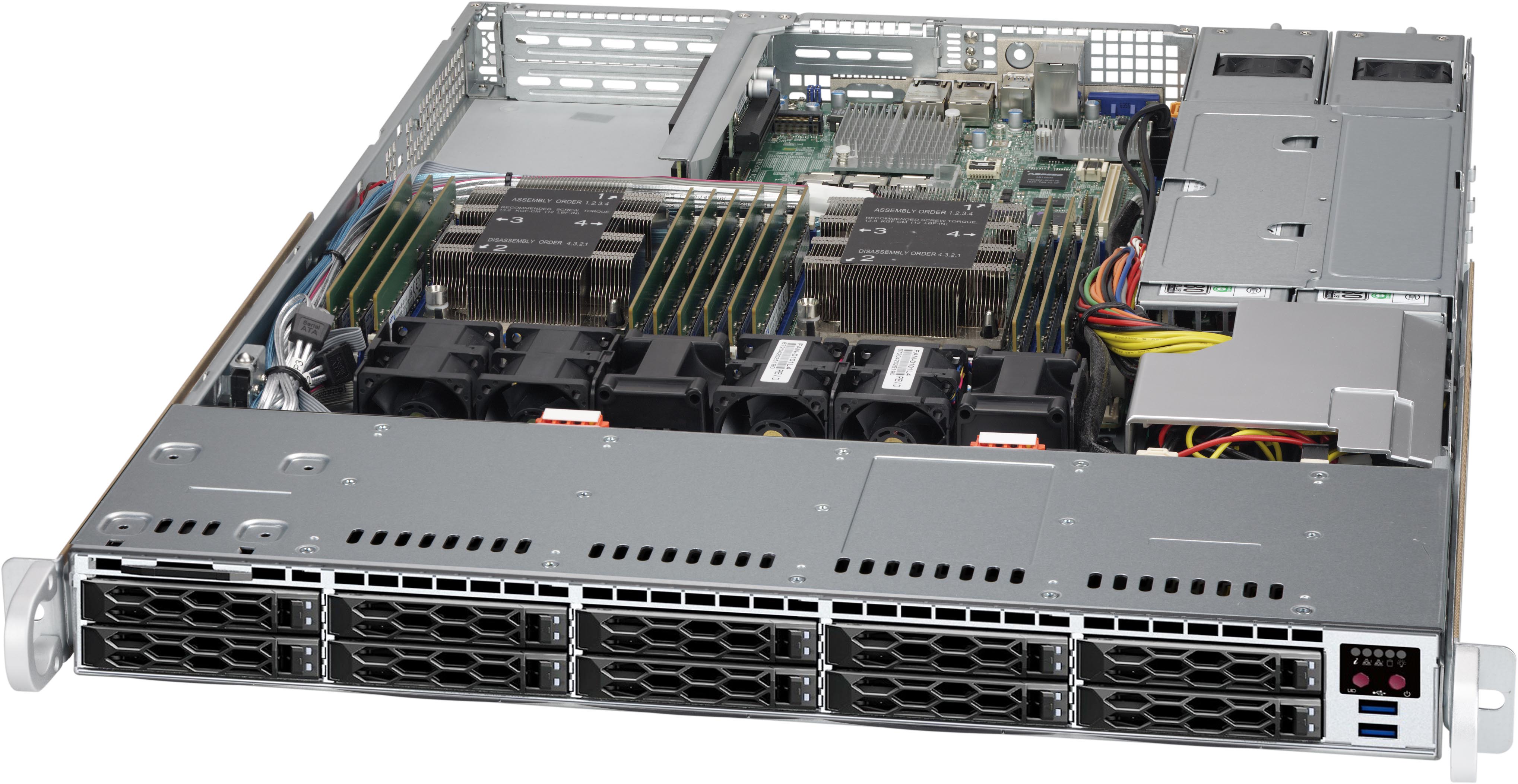

Supermicro CSE-LB16AC2-R504W,1U RM,WIO, 10x HS 2.5" SAS3(12Gb/s) or NVMe Bays,2x FH/FL Slots,R500W
Starting atContact Sales
Key Features SAS3 12Gb/s and NVMe support Optimized for WIO (W series) motherboards, support MB size up to 12.3" x 13.4" 10 x 2.5"(tool-less) hot-swap SAS3/SATA drive bay SAS or enterprise SATA HDD only recommended 1U SAS/SATA Backplane with SES2 support 1U 500W Redundant power supply Platinum level, 24Pin output 2x full-height & full-length expansion slot(s) 1x low-profile expansion slot 3 x 40x56mm counter-rotation PWM fan(s) Support Service Tag for system information OEM Only, MOQ Applies
Supermicro SC111LT-330C, 1U RM(22" Depth), 4x HS 2.5" SAS/SATA Bays, 1x FF, 330W, 80+
Starting atContact Sales
Key Features 1. 330W high-efficiency power supply 80 PLUS Silver Level 2. 4x Hot-swap 2.5" SAS / SATA HDD trays 3. 1x Full-height, full-length expansion slot 4. 3x 40x28mm 13K RPM 4-pin PWM fans 5. Supports motherboard sizes of 12" x 13", 12" x 10", and 9.6" x 9.6" (E-ATX, ATX, and Micro-ATX)
Supermicro SC111T-560C, 1U RM(22" Depth), 4x HS 2.5" SAS/SATA Bays, 1x FF, 560W P.S
Starting atContact Sales
Key Features 1. 560W high-efficiency power supply 2. 4x Hot-swap 2.5" SAS / SATA HDD trays 3. 1x Full-height, full-length AOC expansion slot 4. 3x 40x56mm fans & 2x 40x28mm fans for add-on card (optional) 5. Supports motherboard sizes of 12" x 13" & 12" x 10" (E-ATX, ATX, or Micro-ATX) 6. Optimized for DP motherboards
Supermicro SC111T-560U, 1U RM(22" Depth), 4x HS 2.5" SAS/SATA Bays, 2x FH/1x LP+UIO, 560W P.S
Starting atContact Sales
Key Features 1. 560W high-efficiency power supply 2. 4x Hot-swap 2.5" SAS / SATA HDD trays 3. 2x Full-height & 1x Low-profile AOC expansion slot 4. 3x 40x56mm fans & 2x 40x28mm fans for add-on card (optional) 5. Supports UIO motherboard sizes of 12" x 13" 6. Optimized for DP motherboards
Supermicro SC111TQ-563C, 1U RM(22" Depth), 4x HS 2.5" SAS/SATA Bays, 1x FF, 560W, 80+
Starting atContact Sales
Key Features 1. 560W High-efficiency Power Supply 80 PLUS, Gold Level Certified 2. 4x Hot-swap 2.5" SAS / SATA HDD trays 3. 1x Full-height, full-length AOC expansion slot 4. 3x 40x56mm 4-pin PWM fans and 2x 40x28mm 4-pin PWM fans for add-on card (optional) 5. Supports motherboard sizes of 12" x 13" & 12" x 10"
Supermicro SC111TQ-600C, 1U RM(22" Depth), 4x HS 2.5" SAS/SATA Bays, 1x FF, 600W/DSC, 80+
Starting atContact Sales
Key Features 1. 600W High-efficiency Power Supply with Digital Switching Control 2. 4x 2.5" Hot-swap SAS / SATA Drive Bays 3. 3x 40x56mm 4-pin PWM fans and 2x 40x28mm 4-pin PWM fans for add-on card (optional) 4. 1x Full-height I/O Expansion slot 5. Supports motherboard sizes of 12" x 13" & 12" x 10" (E-ATX, ATX, or Micro-ATX)
Supermicro SC113AC2-605W, 1U RM(23.5" Depth), 8x HS 2.5" SAS3(12Gb/s)/NVMe Bays, 600W
Starting atContact Sales
Key Features 1U Rackmount chassis, support for motherboard size: 12" x 13" E-ATX and 13.68" x 13" 8 x 2.5" hot-swap SAS3/SATA3 (2 NVMe Ports) drive bay SAS or enterprise SATA HDD only recommended 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices 1U 600W platinum efficiency multiple output power supply w/pmbus 2 full height expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required) 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fan for PCI card cooling
Supermicro SC113AC2-R706WB2, 1U RM(23.5" Depth), 8x HS 2.5" SAS3(12Gb/s)/NVMe Bays, R700W(1+1)
Starting atContact Sales
Key Features 1U rackmount chassis, support for motherboard size: 12" x 13" E-ATX Optimized for X11 WIO (W series) motherboards 8 x 2.5" hot-swap SAS/SATA drive bay SAS or enterprise SATA HDD only recommended 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width 2 full height expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required) 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fan for PCI card cooling
Supermicro SC113MFAC2-341, 1U RM(20" Depth), 8x HS 2.5" SAS3(12Gb/s)/NVMe Bays, 340W
Starting atContact Sales
Key Features 1U Chassis for motherboard support size: (12" x 10") (ATX 12" x 10") 8 x 2.5" hot-swap SAS/SATA drive bay 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices 1U 340W Multi-output power supply W/PMbus, Platinum level 1 full-height & full-length expansion slot(s) 4 x 40x28mm PWM fan(s)
