Intel SBCE, 14x Blade Slots, 2x HS Management/4x HS Switch Modules Bays, 2x 2000W, 7U RM Chassis
Starting atContact Sales
Expand Data Center Capacity As the number of servers in your data center grows, so do your deployment and management headaches. In fact, with traditional pedestal and rack servers, data center staffing costs seem to grow dramatically as the data center grows. Now, the Intel® Blade Server Chassis SBCE lets you add servers to your data center while actually decreasing deployment and service work. Blade computing introduces a new data center paradigm where many ultra-thin compute blades share centralized resources such as power supplies, fans and network switches in a single chassis. The Intel Blade Server Chassis SBCE is an example of state-of-the-art blade engineering that allows you to greatly expand computing power while reducing management resources.

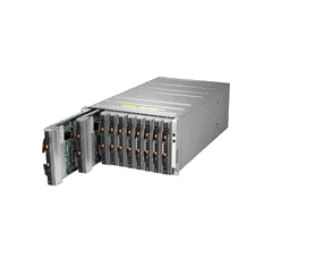

Super SBE-610JB-422,10xHS 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,4x2200W+4x1200W BBP
Starting atContact Sales
Enclosure SBE-610J Processor Blade Up to 10 1-socket blade servers Up to 10 2-socket blade servers LED Power LED, Fault LED 25G Switch 2x 25G Ethernet switches Ethernet Switch 2x 10G/1G Ethernet switches Management Module One CMM for remote system management with software Management module not included in the enclosure Power Supplies Up to eight hot-swap 2200W Titanium power supplies Cooling Design Up to 8 cooling fans and PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J-822 - Enclosure with eight 2200W Titanium (96% efficiency) power supplies SBE-610J-622 - Enclosure with six 2200W Titanium (96% efficiency) power supplies + 2 cooling fans SBE-610J-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + 4 cooling fans SBE-610JB-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + four 1200W BBP
SuperBlade MBE-314E-220, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R2000W(1+1 )
Starting atContact Sales
Enclosure MBE-314E-220 (2x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 2 hot-swap High-efficiency 2000W, redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)
SuperBlade MBE-314E-220D, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM,3U RM,R2000W(1+1 )
Starting atContact Sales
Enclosure MBE-314E-220 (2x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 2 hot-swap High-efficiency 2000W, redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)

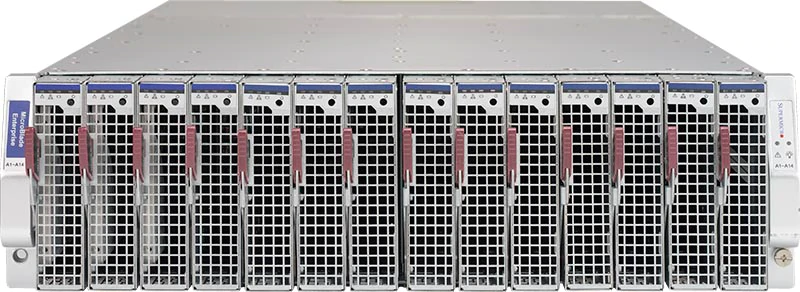

SuperBlade MBE-314E-222, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R2200W(1+1 )
Starting atContact Sales
Server Blade Up to 14 hot-swap server blades Node Support Intel® based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports two hot-plug MBM-GEM-004/MBM-XEM-002/MBM-XEM-100 switches Switch modules are not included in the enclosure Management Module 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 2 PWS-2K21A-BR hot-swap high-efficiency 2200W, redundant power supplies Cooling Design 2 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 32" (132.5mm x 449mm x 813mm)
SuperBlade MBE-314E-416, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R1600W(N+1 )
Starting atContact Sales
Enclosure MBE-314E-416 (4x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 4 hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 34.45" (132.5mm x 449mm x 875mm)
SuperBlade MBE-314E-420, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R2000W(N+1 )
Starting atContact Sales
Enclosure MBE-314E-416 (4x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 4 hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 34.45" (132.5mm x 449mm x 875mm)
SuperBlade MBE-314E-420D, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM,3U RM,R2000W(N+1 )
Starting atContact Sales
Enclosure MBE-314E-416 (4x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 4 hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 34.45" (132.5mm x 449mm x 875mm)
SuperBlade MBE-314E-422, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,4x 2200W
Starting atContact Sales
Server Blade Up to 14 hot-swap server blades Node Support Intel® based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports two hot-plug MBM-GEM-004/MBM-XEM-002/MBM-XEM-100 switches Switch modules are not included in the enclosure Management Module 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 4 PWS-2K21A-BR hot-swap high-efficiency 2000W, N+1 or N+N redundant power supplies Cooling Design 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)
SuperBlade MBE-620E-422,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,4xHS 2200W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-422 ¿ Enclosure with 4 hot-swap 2200W Power Supplies + 4 cooling fans

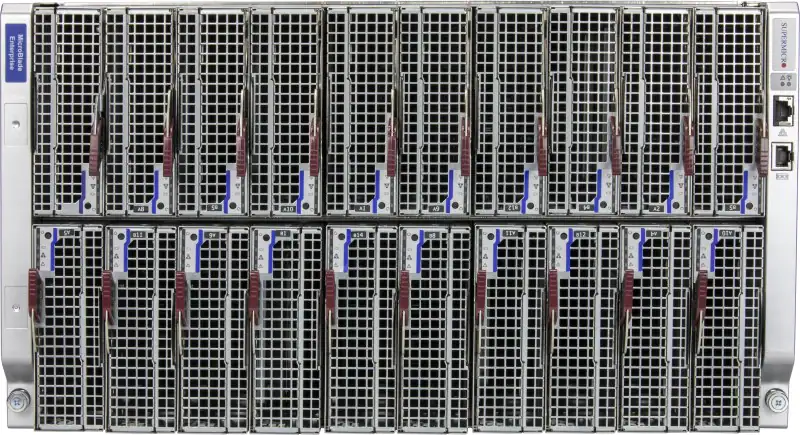

SuperBlade MBE-620E-430,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,4xHS 3000W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-430 ¿ Enclosure with 4 hot-swap 3000W Power Supplies + 4 cooling fans
SuperBlade MBE-620E-622,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,6xHS 2200W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-622 ¿ Enclosure with 6 hot-swap 2200W Power Supplies + 2 cooling fans
SuperBlade MBE-620E-630,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,6xHS 3000W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-630 ¿ Enclosure with 6 hot-swap 3000W Power Supplies + 2 cooling fans
SuperBlade MBE-620E-822,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,8xHS 2200W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-822 ¿ Enclosure with 8 hot-swap 2200W Power Supplies
SuperBlade MBE-620E-830,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,8xHS 3000W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-830 ¿ Enclosure with 8 hot-swap 3000W Power Supplies
SuperBlade MBE-628E-416, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,1600W(4x PWS )
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
SuperBlade MBE-628E-420, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,2000W(4x PWS )
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
SuperBlade MBE-628E-420D,28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,2000W(4x PWS)
Starting atContact Sales
Server Blade Up to 28 hot-swap server blades Node Support Intel® E3 and E5 based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Up to 2 hot-swap MBM-GEM-001 or MBM-XEM-001 switches Switch modules are not included in the enclosure Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 4 PWS-2K02D-BR hot-swap high-efficiency 2000W, N+1 or N+N redundant DC power supplies DC Power cables (CBL-PWEX-0980-1) are not included in the enclosure Cooling Design 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm)

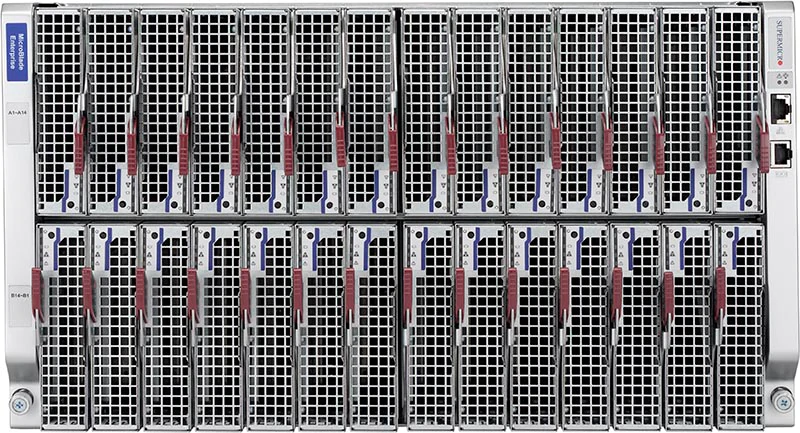

SuperBlade MBE-628E-422, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,2200W(4x PWS )
Starting atContact Sales
Server Blade Up to 28 hot-swap server blades Node Support Intel® E3 and E5 based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules are not included in the enclosure Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 4 PWS-2K21A-BR hot-swap high-efficiency 2200W, N+1 or N+N redundant power supplies Cooling Design 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 34.45" (265mm x 449mm x 875mm)

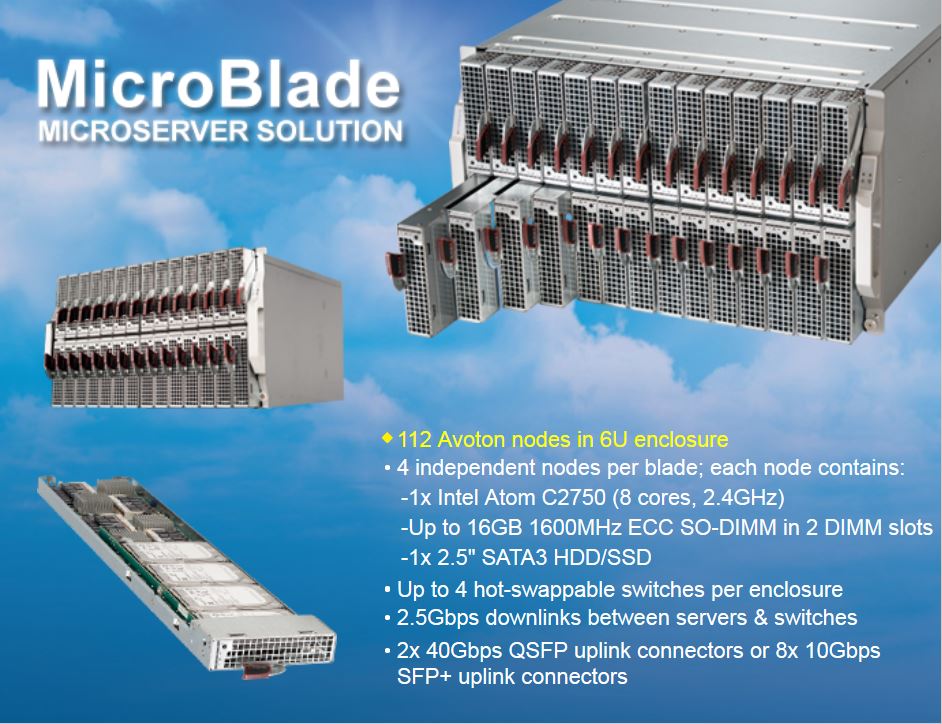

SuperBlade MBE-628E-622, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,2000W(6x PWS )
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
