Product Overview
Expand Data Center Capacity
As the number of servers in your data center grows, so do your deployment and management headaches. In fact, with traditional pedestal and rack servers, data center staffing costs seem to grow dramatically as the data center grows. Now, the Intel® Blade Server Chassis SBCE lets you add servers to your data center while actually decreasing deployment and service work. Blade computing introduces a new data center paradigm where many ultra-thin compute blades share centralized resources such as power supplies, fans and network switches in a single chassis. The Intel Blade Server Chassis SBCE is an example of state-of-the-art blade engineering that allows you to greatly expand computing power while reducing management resources.
Specifications
Model

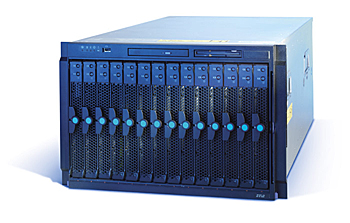

Intel® Blade Server Chassis SBCE
Blade Bays (on front)
14 hot-plug blade bays
Media Tray (on front)
1x 1.44MB FDD, 1x IDE CD-Rom, 1x USB(V1.1) Port, LED Panel
Module Bays (on rear)
Four hot-swap 220-volt power-module bays, Two hot-plug management module bays, Four hot-plug switch-module bays, Two hot-swap blower bays
Redundant Cooling
Two redundant variable-speed hot-swap blowers, 325 cubic ft per min (CFM), front to back airflow
Power-on LED
When this green LED is lit, power is present to the SBCE unit
Location LED
When this blue LED is lit or flashing, it has been turned on by the system administrator, to aid in visually locating the SBCE unit
Over-temperature LED
When this amber LED is lit, the temperature in the SBCE unit exceeds the temp limits or a blade server reports an over-temp condition
Information LED
When this amber LED is lit, a noncritical event has occurred that requires attention
Standard Power Modules
Two 1400-watt or greater (200-240VAC) hot-swap power modules; both power modules provide redundancy to each other
Maximum Power Modules
Four Power modules 1 and 2 supply 12V to all switch and management modules and to blade bays 1 through 6 Power modules 3 and 4 supply 12V to blade bays 7 through 14 Power modules 1 and 2 provide redundancy to each other Power modules 3 and 4 provide redun
Switch Modules
Standard, Maximum Switch Modules: Two hot-plug 1 Gbit Ethernet four-port switch modules and two hot-plug switch modules of another network-communication standard, such as Fibre Channel
Management Module
Redundant hot-plug management modules provide the following features: System, Management functions for the SCBE system, Analog Video Port, PS2 Mouse & Keyboard, 10/100Bt Ethernet remote management connection.
Upgradeable Microcode
Management Module: Firmware, Ethernet Switch Module: Firmware, Blade Server Service Processor: Firmware.
Security Features
Remote Connection: Login password, Remote Management Access: Secure socket layer (SSL) security
Dimension
17.5" H (7U) x 12" W x 28" D, Weight: 124.73 kg. (275 lbs.) fully configured with modules and blades 44.91 kg. (99 lbs.) fully configured without blades
Acoustical Noise Emissions
Without Acoustics Module Option: Sound power, idle: 7.4 bels maximum Sound power, operating: 7.4 bels maximum, With Acoustics Module Option: Sound power, idle: 6.9 bels maximum Sound power, operating: 6.9 bels maximum
