Product Overview

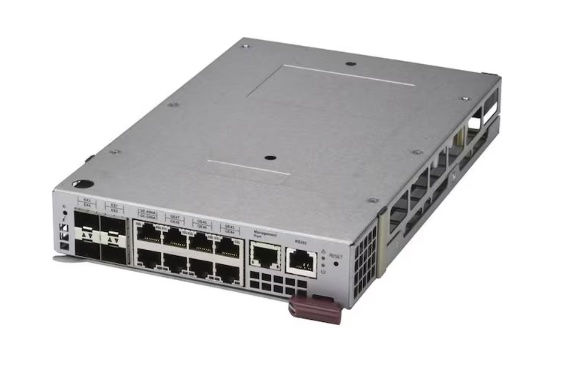

MicroBlade Switch Module (MBM-GEM-003i) Layer 2 Features Layer 2 Switch ports VLAN Encapsulation 802.1Q Spanning Tree Protocol (STP) 802.1d STP Port Fast STP PVST LLDP 802.1AB Jumbo Frames (9216 bytes) Layer 3 IPv4 and IPv6 Features Routing Protocols (Static, RIP, OSPF, BGP) IEEE 802.3ad Link Aggregation and Link Aggregation Control Protocol (LACP) Multicast Internet Group Management Protocol (IGMP) and IGMP Snoopiing v2 and v3 Protocol Independent Multicast (PIM) Source Specific Mode (PIM-SSM) Quality of Service (QoS) Layer 2 802.1p Class of Service (CoS) Differentiated Services Code Point (DSCP) Security and ACLs TACACS+ SSH v2 Layer 2 ACLs - source and destination MAC, VLAN and or EtherType-based Layer 3 ACLs - source and destination IP/mask, protocol and TCP/UDP port-based Storm control, port error disable, and auto-recovery Control Plane Denial of Service (DoS) protection Static Address Resolution Protocol Filter Actions - logging, system, reject, mirror to an interface, counters assign forwarding class, permit, drop, police, mark Secure Socket Layer (SSL) Management Secure File Transfer Protocol (SFTP) server SNMP v1, v2, v3 Syslog Enhanced SNMP MIB Support Role-based Access Management (RBAC) Traffic Mirroring Port Mirror to remote destination (SPAN) Statistics sFlow
