MCP-290-00010, Heavy Duty Sliding Rail(a pair) via SuperBlade
Starting atContact Sales
MCP-290-00010, Heavy Duty Sliding Rail(a pair) via SuperBlade
PWS-1K27A-1R, 1000W/1200W 1U 54.5Wx322Lx40H mm redundant Titanium
Starting atContact Sales
PWS-1K27A-1R, 1000W/1200W 1U 54.5Wx322Lx40H mm redundant Titanium
Super MBM-GEM-001, 2x 40Gb QSFP or 8x 10Gb/SFP+ Uplinks,56x 2.5Gb or 1Gb Downlinks MicroBlade Switch
Starting atContact Sales
MicroBlade SDN Switch Module (MBM-GEM-001) General Specifications Intel® FM5224 GbE Low Latency Switch 1Gbps RJ45, 2x 40Gbps QSFP or 8x 10Gbps SFP+ uplinks 56x 2.5Gbps or 1Gbps downlinks 1 Console port 1 USB port Switching Capacity 442Gbps Physical Layer Features Jumbo frames up to 9KB 40 gigabit optical/copper 10 gigabit optical Ethernet SFP+/copper 1 gigabit RJ45 Ethernet 1 gigabit optical Ethernet copper Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ac VLAN tagging IEEE 802.1AX LAG IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advanced Layer 2 Features Storm control Flow control Port mirroring Static MAC filtering UDLD Uplink Failure Detection (UFD) Data Center Features L2 Data Center Bridging CEE v1.01 DCB for PFV/ETS
Super MBM-GEM-003S, Intel embedded switch + PN SDF Software MicroBlade Switch
Starting atContact Sales
MicroBlade Switch Module (MBM-GEM-003S) Advanced Virtualization and Fabric Clustering Fabric Cluster Fabric-wide Analytics VXLANs VXLANs central MAC learning VTEP (VXLAN Gateway) Layer 2 Features MAC address caching and ARP pruning Layer 2 Switch ports VLAN Encapsulation 802.1Q Spanning Tree Protocol (STP) 802.1d STP Port Fast STP PVST LLDP 802.1AB Jumbo Frames (9216 bytes) Layer 3 IPv4 and IPv6 Features Routing Protocols (Static, RIP, OSPF, BGP) IEEE 802.3ad Link Aggregation and Link Aggregation Control Protocol (LACP) Multi-Chassis Link Aggregation VLAG Multi-Chassis Link Aggregation (flow-based bridged or routed multicast/unicast traffic) High Availability Cluster Data Center Bridging Edge Virtual Bridging (IEEE 802.1Qbg) Multicast Internet Group Management Protocol (IGMP) and IGMP Snoopiing v2 and v3 Protocol Independent Multicast (PIM) Source Specific Mode (PIM-SSM) Quality of Service (QoS) vFlow-based QoS Classification Layers 2, 3, 4 Layer 2 802.1p Class of Service (CoS) Differentiated Services Code Point (DSCP)
Super MBM-GEM-003i, Intel embedded switch + PN IPS Software MicroBlade Switch
Starting atContact Sales
MicroBlade Switch Module (MBM-GEM-003i) Layer 2 Features Layer 2 Switch ports VLAN Encapsulation 802.1Q Spanning Tree Protocol (STP) 802.1d STP Port Fast STP PVST LLDP 802.1AB Jumbo Frames (9216 bytes) Layer 3 IPv4 and IPv6 Features Routing Protocols (Static, RIP, OSPF, BGP) IEEE 802.3ad Link Aggregation and Link Aggregation Control Protocol (LACP) Multicast Internet Group Management Protocol (IGMP) and IGMP Snoopiing v2 and v3 Protocol Independent Multicast (PIM) Source Specific Mode (PIM-SSM) Quality of Service (QoS) Layer 2 802.1p Class of Service (CoS) Differentiated Services Code Point (DSCP) Security and ACLs TACACS+ SSH v2 Layer 2 ACLs - source and destination MAC, VLAN and or EtherType-based Layer 3 ACLs - source and destination IP/mask, protocol and TCP/UDP port-based Storm control, port error disable, and auto-recovery Control Plane Denial of Service (DoS) protection Static Address Resolution Protocol Filter Actions - logging, system, reject, mirror to an interface, counters assign forwarding class, permit, drop, police, mark Secure Socket Layer (SSL) Management Secure File Transfer Protocol (SFTP) server SNMP v1, v2, v3 Syslog Enhanced SNMP MIB Support Role-based Access Management (RBAC) Traffic Mirroring Port Mirror to remote destination (SPAN) Statistics sFlow
Super MBM-GEM-004, Broadcom Embedded, 4x 10Gb/SFP+ & 8x 1Gb(Up), 28x 1Gb(Down) MicroBlade SDN Switch
Starting atContact Sales
MicroBlade SDN Switch Module (MBM-GEM-004) General Specifications Broadcom BCM56151 1GbE Switch 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks 28x 1Gbps downlinks 1 Console port Switching Capacity 176Gbps Physical Layer Features Jumbo frames up to 9KB 10 gigabit optical Ethernet SFP+/copper 1 gigabit RJ45 Ethernet Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advanced Layer 2 Features Storm control Flow control Port mirroring Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists (to 4K) SSH, SSL Encryption System Management Industry Standard CLI SNMP v1/v2/v3 SSH Syslog DHCP (Client) Web-based management interface NTP RMON Multicast IGMP Snooping Weight 3.1lbs/1.4kg Dimensions (W x D x H) 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4")
Super MBM-XEM-001, 4x 40Gb QSFP Uplinks, 56x 10Gb or 1Gb Downlinks Microlade Switch
Starting atContact Sales
MicroBlade SDN Switch Module (MBM-XEM-001) General Specifications Intel® FM6348 10GbE Low Latency Switch 4x 40Gbps QSFP uplinks 56x 10Gbps or 1Gbps downlinks 1 Console port 1 USB port Switching Capacity 960Gbps Physical Layer Features Jumbo frames up to 9KB 40 gigabit optical/copper 1 gigabit optical Ethernet copper Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ac VLAN tagging IEEE 802.1AX LAG IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Advanced Layer 2 Features Storm control Flow control Port mirroring Static MAC filtering UDLD Uplink Failure Detection (UFD) Data Center Features L2 Data Center Bridging CEE v1.01 DCB for PFV/ETS SDN Open Flow 1.x Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists (to 4K) SSH, SSL Encryption System Management XML-RPC Industry Standard CLI Command completion Content-sensitive "Help" SNMP v1/v2/v3 SSH TFTP Client Syslog DHCP (Client) Web-based management interface ¿ (future) ¿¿ HTTP/HTTPS NTP
Super MBM-XEM-002+, 2x40G/QSFP+,4x10G/SFP+,1x 1G uplinks,56x 10/1Gbps downlinks,1 Console & USB Port
Starting atContact Sales
Super MBM-XEM-002+, 2x 40Gb QSFP Uplinks, 56x 10Gb or 1Gb Downlinks Microlade Switch with RJ45
Super MBM-XEM-002, 2x40G/QSFP+, 4x10G/SFP+ uplinks, 56x 10/1Gbps downlinks, 1 Console & USB port,
Starting atContact Sales
Super MBM-XEM-002, 2x40G/QSFP+ and 4x10G/SFP+ uplinks, 56x 10/1Gbps downlinks, 1 Console & USB port,
Super MBM-XEM-100, 4x 40G/100G Ethernet Uplinks, 56x 10Gb Downlinks Microlade Switch
Starting atContact Sales
MBM-XEM-100 General Specifications 56x 10G Ethernet downlink 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables 1x Gigabit Ethernet uplink 1 console port Switching Capacity 1060Gbps Physical Layer Features 100G/40G optical/copper QSFP28 Gigabit Ethernet copper RJ45 Layer 2 Features 4K VLANs Spanning Tree Protocol (802.1D) Rapid Spanning Tree Protocol (802.1w) IEEE 802.lQ VLANs/ port-based VLANs Multiple Spanning Tree Protocol (802.1s) Jumbo frames up to 9KB IEEE 802.1AX LAG IEEE 802.3ac VLAN tagging IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists SSH, SSL Encryption DHCP Snooping System Management Industry Standard CLI Web-based management interface ¿ HTTP/HTTPS Syslog SSH SNMP v1/v2/v3 NTP Content-sensitive "Help" Auto Command completion TFTP Client XML-RPC Blade Network Manager (BNM) Multicast IGMP Snooping Weight 3.2lbs/1.5kg Dimensions (W x D x H) 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") Download Switch Configuration User's Guide [ Download ]
Super SBM-25G-100, 4x 40G/100G Uplinks, 20x 25Gb Ethernet Downlinks Microlade Switch
Starting atContact Sales
SBM-25G-100 General Specifications 20x 25G Ethernet downlink (backward compatible to 20x10G) 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables 1x Gigabit Ethernet uplink 1 console port Switching Capacity 1800Gbps Physical Layer Features 100G/40G optical/copper QSFP28 Gigabit Ethernet copper RJ45 Layer 2 Features 4K VLANs Spanning Tree Protocol (802.1D) Rapid Spanning Tree Protocol (802.1w) IEEE 802.lQ VLANs/ port-based VLANs Multiple Spanning Tree Protocol (802.1s) Jumbo frames up to 9KB IEEE 802.1AX LAG IEEE 802.3ac VLAN tagging IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists SSH, SSL Encryption DHCP Snooping System Management Industry Standard CLI Web-based management interface ¿ HTTP/HTTPS Syslog SSH SNMP v1/v2/v3 NTP Content-sensitive "Help" Auto Command completion TFTP Client XML-RPC Blade Network Manager (BNM) Multicast IGMP Snooping Weight 3.2lbs/1.5kg Dimensions (W x D x H) 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") Download Switch Configuration User's Guide [ Download ]

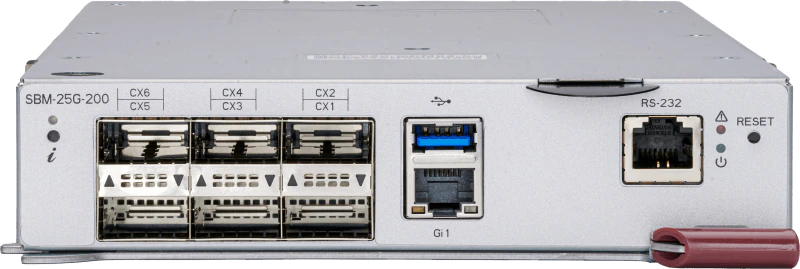

Super SBM-25G-200, 6x 40G/100G+1G Uplinks, 40/56x 25Gb Downlinks Super/Microlade Switch
Starting atContact Sales
SBM-25G-200 General Specifications Broadcom BCM56770 25GbE Low Latency Switch 6x 100G/40G & 1x 1G uplinks* 40x 25Gbps downlinks (SuperBlade), 56x 25Gbps downlinks (MicroBlade) 1 Console port 1 USB port Switching Capacity 2000Gbps Physical Layer Features Jumbo frames up to 9KB 100G/40G QSF28/QSFP+ optical/copper 1G RJ-45 copper Layer 3 Features IPv4 unicast routing - static routing, RIP, OSPF and BGP IPv6 unicast routing - static routing VRRP (Virtual Router Redundancy Protocol) ECMP (Equal-cost multi-path) PIM IGMP Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

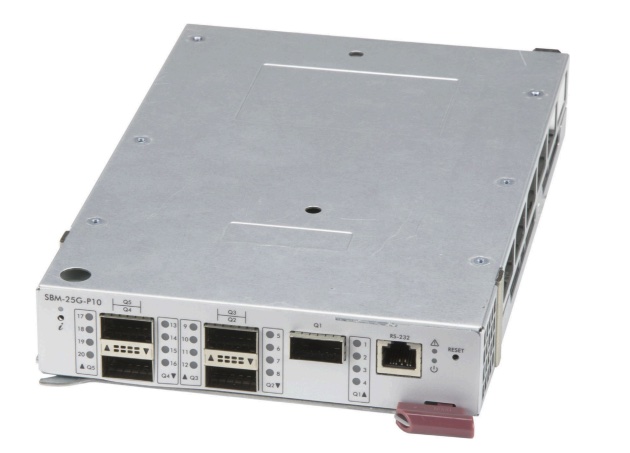

Super SBM-25G-P10, New SuperBlade 20 ports pass-thru module
Starting atContact Sales
SBM-25G-200 General Specifications Broadcom BCM56770 25GbE Low Latency Switch 6x 100G/40G & 1x 1G uplinks* 40x 25Gbps downlinks (SuperBlade), 56x 25Gbps downlinks (MicroBlade) 1 Console port 1 USB port Switching Capacity 2000Gbps Physical Layer Features Jumbo frames up to 9KB 100G/40G QSF28/QSFP+ optical/copper 1G RJ-45 copper Layer 3 Features IPv4 unicast routing - static routing, RIP, OSPF and BGP IPv6 unicast routing - static routing VRRP (Virtual Router Redundancy Protocol) ECMP (Equal-cost multi-path) PIM IGMP Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

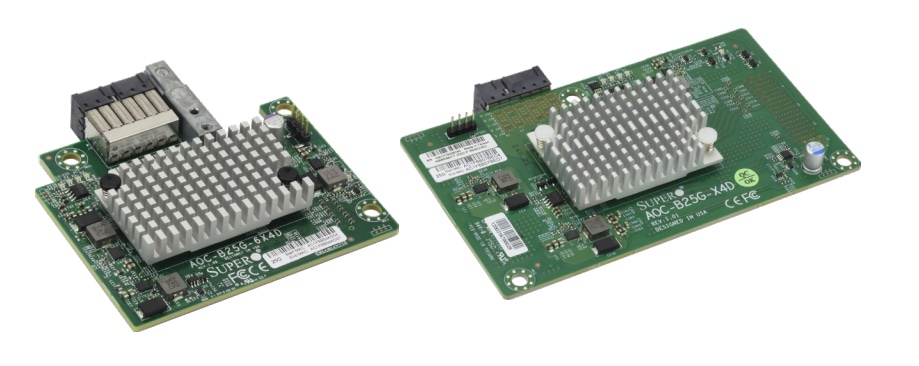

SuperBlade AOC-B25G-6X4D-O,Dual-port 25G Mezz Card for SuperBlade 6U Chass(Mellanox)
Starting atContact Sales
SuperBlade AOC-B25G-6X4D-O,Dual-port 25G Mezz Card for SuperBlade 6U Chass(Mellanox)
SuperBlade AOC-B25G-X4D-B, SuperBlade 2-port 25GbE Mezzanine Card
Starting atContact Sales
SuperBlade AOC-B25G-X4D-B, SuperBlade 2-port 25GbE Mezzanine Card
SuperBlade AOC-B25G-X4D-O, SuperBlade 2-port 25GbE Mezzanine Card
Starting atContact Sales
SuperBlade AOC-B25G-X4D-O, SuperBlade 2-port 25GbE Mezzanine Card
SuperBlade AOC-IBH-002 Mezzanine HCA, Single 4x DDR 20Gbps ports, SMBUS for Management
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001 and AOC-IBH-002 mezzanine cards provide this 20Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module.

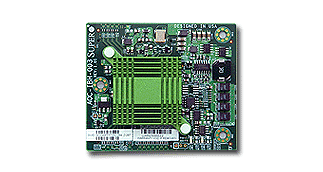

SuperBlade AOC-IBH-003 Mezzanine HCA, Dual 4x DDR 20Gbps ports, Support both IB & 10G
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001 and AOC-IBH-002 mezzanine cards provide this 20Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module.
SuperBlade AOC-IBH-X4ES-O, Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4
Starting atContact Sales
SuperBlade AOC-IBH-X4ES-O, Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4

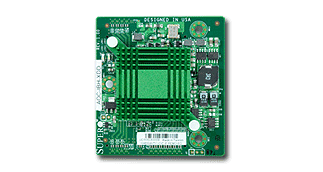

SuperBlade AOC-IBH-XDD, Mezzanine HCA, Dual 4x DDR 20Gbps ports, Support both IB & 10G
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001, AOC-IBH-002, AOC-IBH-003 and AOC-IBH-XDD mezzanine cards provide this 20-Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module. The AOC-IBH-003 and AOC-IBH-XDD can alternatively be used for 10-Gbps Ethernet connectivity when used in concert with the SBM-XEM-002 10-Gbps Pass-through module.
