Product Overview

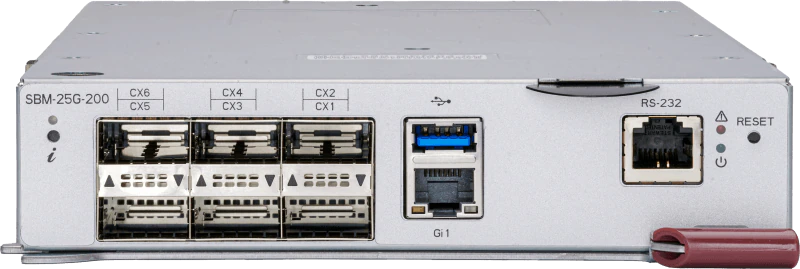

SBM-25G-200 General Specifications Broadcom BCM56770 25GbE Low Latency Switch 6x 100G/40G & 1x 1G uplinks* 40x 25Gbps downlinks (SuperBlade), 56x 25Gbps downlinks (MicroBlade) 1 Console port 1 USB port Switching Capacity 2000Gbps Physical Layer Features Jumbo frames up to 9KB 100G/40G QSF28/QSFP+ optical/copper 1G RJ-45 copper Layer 3 Features IPv4 unicast routing - static routing, RIP, OSPF and BGP IPv6 unicast routing - static routing VRRP (Virtual Router Redundancy Protocol) ECMP (Equal-cost multi-path) PIM IGMP Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
