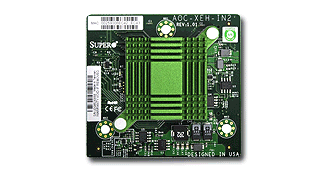

SuperBlade AOC-XEH-iN2, Dual Port 10G Ethernet AOC for Blade
Starting atContact Sales
AOC-XEH-iN2 This 10-Gigabit Ethernet mezzanine card for the SuperBlade delivers cost-effective high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-XEH-iN2 simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. It operates as a 10-Gigabit Ethernet NIC when used with either the Supermicro SBM-XEM-002 10-Gigabit Pass-Through module or with the Supermicro 10-Gigabit Ethernet Blade switch SBM-XEM-X10SM.
SuperBlade GEM-001 GB Ethernet Switch, BCM5345M, 10x 1-Gbps Up+DownLink, 21 Gbps non-blocking
Starting atContact Sales
Gigabit Ethernet Switch GEM001 Chipset Broadcom BCM5345M Internal Ports Ten 1-Gbps downlink ports for LAN interfaces of the server blades (capable of 14 internal ports) External Uplink Ports Ten 1-Gbps uplink RJ-45 ports Type Layer-2 switch Bandwidth 21 Gbps non-blocking Trunking Link aggregation support Jumbo Frame Support Up to 9k bytes Remote Management Browser-based management Protocols Spanning Tree, Rapid Spanning Tree, and Multiple Spanning Tree protocols (802.1D/1s/1w) OS Firmware upgradeable
SuperBlade GEM-002 GB Ethernet Pass-Through Module, 14x 1-Gbps Up+DownLink Ports
Starting atContact Sales
Pass-Through The Gigabit Ethernet Pass-through Module (part ID SBM-GEM-002) is a non-configurable pass through module that includes fourteen 1-Gb/s external uplink (RJ45) ports and fourteen internal 1-Gb/s downlink ports for the SuperBlade®'s LAN interfaces. This module also has two internal Ethernet paths to the CMM(s) for viewing module temperature and voltage (but not for configuration since all connections are fixed).

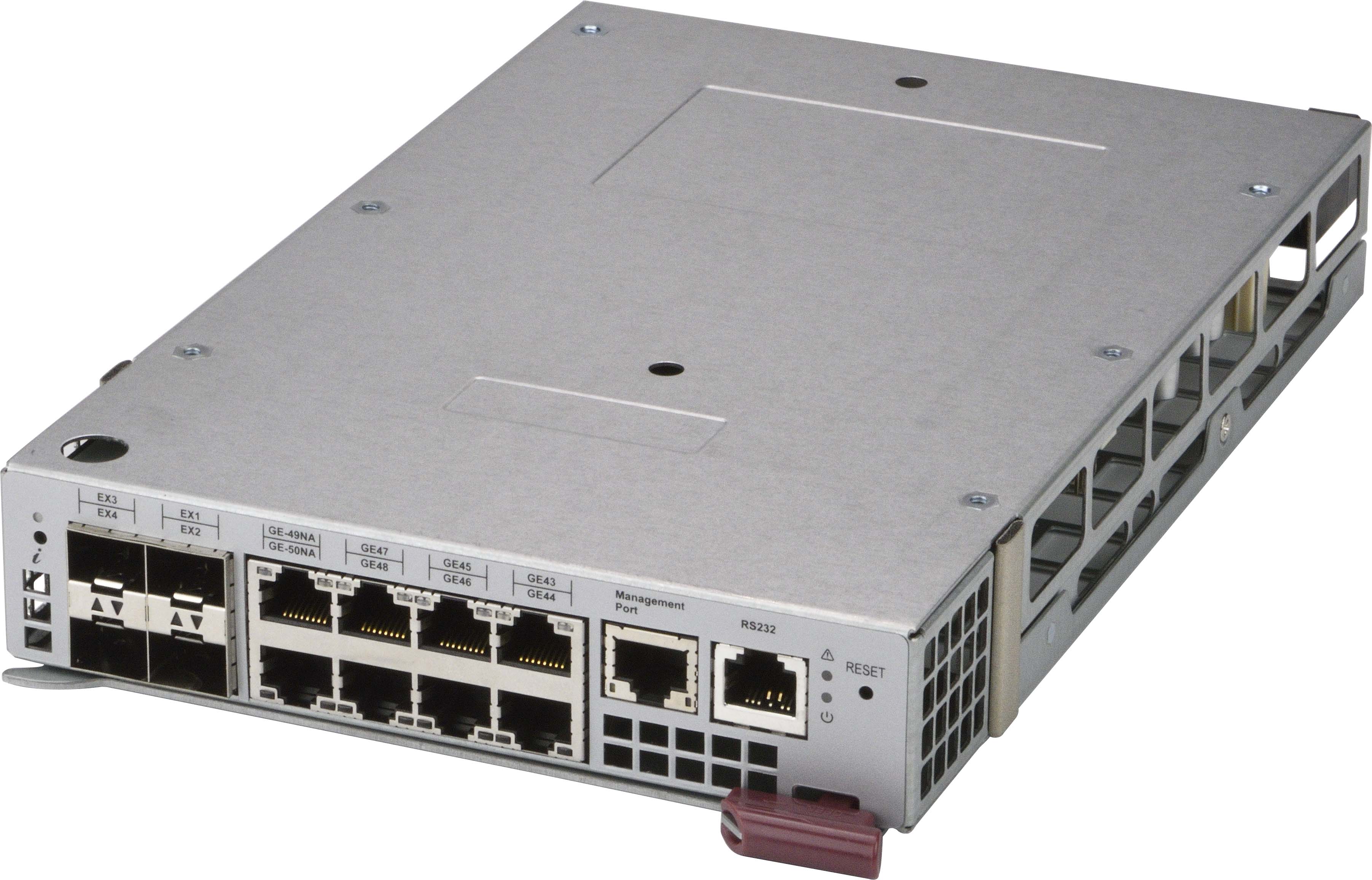

SuperBlade GEM-004,GB Ethernet Switch, BCM56151, 4x 10Gb/SFP+ & 8x 1Gb Uplinks, 28x 1Gb DownLink,
Starting atContact Sales
SuperBlade GEM-004,GB Ethernet Switch, BCM56151, 4x 10Gb/SFP+ & 8x 1Gb Uplinks, 28x 1Gb DownLink,
SuperBlade GEM-X2C+, 1/10 Gigabit Ethernet Switch Module, 20x 1-Gbps(Downlink)/3x 10-Gbps(Uplink)
Starting atContact Sales
SBM-GEM-X2C/+* (TwinBlade¿) Internal Ports * Up to twenty 1-Gbps downlink ports for LAN interfaces of the server blades External Uplink Ports * Three 10-Gbps uplink ports (Two CX4, stackable & One SFP+) * Two 1-Gbps RJ-45 uplink ports Type * Layer-2 / 3 switch Switching Capacity * 112Gbps Trunking * Link aggregation support (802.3ad-full) Jumbo Frame Support * Up to 9k bytes Remote Management * Browser-based management / CLI Protocols * STP, RSTP, MSTP, IGMP snooping, 802.1x OS * Firmware upgradeable Download * CLI Manual [ Download ] * Firmware [ Download ] - Release 1.0.7-4
SuperBlade GEM-X3S+, 1/10 Gigabit Ethernet Switch w/SFP+, 20x 1-Gbps(Downlink)/3x 10-Gbps(Uplink)
Starting atContact Sales
Internal Ports Up to twenty 1-Gbps downlink ports for LAN interfaces of the server blades External Uplink Ports Three 10-Gbps SFP+ uplink ports Four 1-Gbps RJ-45 uplink ports Type Layer-2 / 3 switch Switching Capacity 104 Gbps Trunking Link aggregation support (802.3ad-full) Jumbo Frame Support Up to 9k bytes Remote Management Browser-based management / CLI Protocols STP, RSTP, MSTP, IGMP snooping, 802.1x, LACP, DHCP, RIP/OSPF, ACL, QoS OS Firmware upgradeable Download CLI Manual [ Download ] Firmware [ Download ]
SuperBlade MBE-314E-220, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R2000W(1+1 )
Starting atContact Sales
Enclosure MBE-314E-220 (2x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 2 hot-swap High-efficiency 2000W, redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)
SuperBlade MBE-314E-220D, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM,3U RM,R2000W(1+1 )
Starting atContact Sales
Enclosure MBE-314E-220 (2x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 2 hot-swap High-efficiency 2000W, redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)
SuperBlade MBE-314E-222, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R2200W(1+1 )
Starting atContact Sales
Server Blade Up to 14 hot-swap server blades Node Support Intel® based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports two hot-plug MBM-GEM-004/MBM-XEM-002/MBM-XEM-100 switches Switch modules are not included in the enclosure Management Module 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 2 PWS-2K21A-BR hot-swap high-efficiency 2200W, redundant power supplies Cooling Design 2 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 32" (132.5mm x 449mm x 813mm)
SuperBlade MBE-314E-416, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R1600W(N+1 )
Starting atContact Sales
Enclosure MBE-314E-416 (4x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 4 hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 34.45" (132.5mm x 449mm x 875mm)
SuperBlade MBE-314E-420, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,R2000W(N+1 )
Starting atContact Sales
Enclosure MBE-314E-416 (4x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 4 hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 34.45" (132.5mm x 449mm x 875mm)
SuperBlade MBE-314E-420D, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM,3U RM,R2000W(N+1 )
Starting atContact Sales
Enclosure MBE-314E-416 (4x PWS) Processor Blade Up to 14 hot-plug processor blades Module Support Supports Intel® based blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports 2 hot-plug MBM-GEM-001/003i/003s or MBM-XEM-001 switches Management Module Supports 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supply Up to 4 hot-swap High-efficiency 1600W, N+1 or N+N redundant power supplies Cooling Design Up to 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 34.45" (132.5mm x 449mm x 875mm)
SuperBlade MBE-314E-422, 14x HS Blades, Up to 2x HS GEM Switches & 1x HS CMM/KVM, 3U RM,4x 2200W
Starting atContact Sales
Server Blade Up to 14 hot-swap server blades Node Support Intel® based server blades LED Power LED, Fault LED GbE Switch / Pass-Through Module Supports two hot-plug MBM-GEM-004/MBM-XEM-002/MBM-XEM-100 switches Switch modules are not included in the enclosure Management Module 1 hot-plug Chassis Management Module (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure Power Supplies 4 PWS-2K21A-BR hot-swap high-efficiency 2000W, N+1 or N+N redundant power supplies Cooling Design 4 cooling fans Dimensions (HxWxD) 5.215" x 17.67" x 36.10" (132.5mm x 449mm x 917mm)
SuperBlade MBE-620E-422,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,4xHS 2200W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-422 ¿ Enclosure with 4 hot-swap 2200W Power Supplies + 4 cooling fans
SuperBlade MBE-620E-430,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,4xHS 3000W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-430 ¿ Enclosure with 4 hot-swap 3000W Power Supplies + 4 cooling fans
SuperBlade MBE-620E-622,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,6xHS 2200W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-622 ¿ Enclosure with 6 hot-swap 2200W Power Supplies + 2 cooling fans
SuperBlade MBE-620E-630,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,6xHS 3000W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-630 ¿ Enclosure with 6 hot-swap 3000W Power Supplies + 2 cooling fans
SuperBlade MBE-620E-822,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,8xHS 2200W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-822 ¿ Enclosure with 8 hot-swap 2200W Power Supplies
SuperBlade MBE-620E-830,20xHS Blades,2xHS GEM Switches & 2xHS CMM/KVM,6U RM,8xHS 3000W Redundant P.S
Starting atContact Sales
Server Blade Up to 20 hot-swap server blades Node Support 13th Gen Intel® Core¿-based server blades LED Power LED, Fault LED Ethernet Switch Up to 2 hot-swap MBM-GEM-004, MBM-GEM-001, MBM-XEM-001, or MBM-XEM-002 switches Switch modules not included in the enclosure, must be purchased separately Management Module Up to 2 hot-swap Chassis Management Modules (CMM) providing remote KVM and IPMI 2.0 functionalities Management module not included in the enclosure, must be purchased separately Power Supplies 4, 6, or 8 hot-swap, high-efficiency 2200W (PWS-2K21A-BR) redundant (N+1) or 3000W (PWS-3K01A-BR) redundant (N+N) power supplies Cooling Design Up to 8 cooling fans Dimensions (HxWxD) 10.43" x 17.67" x 36.10" (265mm x 449mm x 917mm) Available Models MBE-620E-830 ¿ Enclosure with 8 hot-swap 3000W Power Supplies
SuperBlade MBE-628E-416, 28x HS DP X10 Blades, Up to 2x GEM Switches,2x CMM/KVM,6U RM,1600W(4x PWS )
Starting atContact Sales
Space Optimization Housed within a 19" industry-standard rack, MicroBlade servers reduce server footprint in the data center. Power, cooling and networking devices are aggregated in the rear of the chassis which optimizes the required amount of space. Up to 28 Blade (112 nodes) can be installed in a 6U chassis. Compared to the 20U of rack space that twenty 1U servers would normally require as individual servers, the MicroBlade provides more than 50% density savings with 6272 Avoton cores per 42U rack. Cable Reduction The MicroBlade server chassis enclosure greatly simplifies the cabling by aggregating cabling of servers together. Up to 99% of network, power, and KVM cabling required for ten 1U servers are reduced by moving to blade servers in a single chassis. These cabling reductions continue across networking, SAN connectivity, and management controllers. Reducing the number of cables speeds up the deployment of servers and helps reduce troubleshooting issues by presenting fewer physical connections to the servers.
