Super SBE-610JB-422,10xHS 1 or 2-Socket Blades,2xCMMs,4x25G/10G/1G Switch,6U RM,4x2200W+4x1200W BBP
Starting atContact Sales
Enclosure SBE-610J Processor Blade Up to 10 1-socket blade servers Up to 10 2-socket blade servers LED Power LED, Fault LED 25G Switch 2x 25G Ethernet switches Ethernet Switch 2x 10G/1G Ethernet switches Management Module One CMM for remote system management with software Management module not included in the enclosure Power Supplies Up to eight hot-swap 2200W Titanium power supplies Cooling Design Up to 8 cooling fans and PWS modules Dimensions (HxWxD) 10.5" x 17.6" x 32" Available Models SBE-610J-822 - Enclosure with eight 2200W Titanium (96% efficiency) power supplies SBE-610J-622 - Enclosure with six 2200W Titanium (96% efficiency) power supplies + 2 cooling fans SBE-610J-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + 4 cooling fans SBE-610JB-422 - Enclosure with four 2200W Titanium (96% efficiency) power supplies + four 1200W BBP
Super SBM-25G-100, 4x 40G/100G Uplinks, 20x 25Gb Ethernet Downlinks Microlade Switch
Starting atContact Sales
SBM-25G-100 General Specifications 20x 25G Ethernet downlink (backward compatible to 20x10G) 4x 100G/40G Ethernet uplinks, each can split into 4x 25G or 4x 10G uplinks with optional fan-out cables 1x Gigabit Ethernet uplink 1 console port Switching Capacity 1800Gbps Physical Layer Features 100G/40G optical/copper QSFP28 Gigabit Ethernet copper RJ45 Layer 2 Features 4K VLANs Spanning Tree Protocol (802.1D) Rapid Spanning Tree Protocol (802.1w) IEEE 802.lQ VLANs/ port-based VLANs Multiple Spanning Tree Protocol (802.1s) Jumbo frames up to 9KB IEEE 802.1AX LAG IEEE 802.3ac VLAN tagging IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Security Features Switch access password protection RADIUS and TACACS+ Authentication Access Control Lists SSH, SSL Encryption DHCP Snooping System Management Industry Standard CLI Web-based management interface ¿ HTTP/HTTPS Syslog SSH SNMP v1/v2/v3 NTP Content-sensitive "Help" Auto Command completion TFTP Client XML-RPC Blade Network Manager (BNM) Multicast IGMP Snooping Weight 3.2lbs/1.5kg Dimensions (W x D x H) 267mm x 159mm x 36mm (10.5" x 6.25" x 1.4") Download Switch Configuration User's Guide [ Download ]
Super SBM-25G-200, 6x 40G/100G+1G Uplinks, 40/56x 25Gb Downlinks Super/Microlade Switch
Starting atContact Sales
SBM-25G-200 General Specifications Broadcom BCM56770 25GbE Low Latency Switch 6x 100G/40G & 1x 1G uplinks* 40x 25Gbps downlinks (SuperBlade), 56x 25Gbps downlinks (MicroBlade) 1 Console port 1 USB port Switching Capacity 2000Gbps Physical Layer Features Jumbo frames up to 9KB 100G/40G QSF28/QSFP+ optical/copper 1G RJ-45 copper Layer 3 Features IPv4 unicast routing - static routing, RIP, OSPF and BGP IPv6 unicast routing - static routing VRRP (Virtual Router Redundancy Protocol) ECMP (Equal-cost multi-path) PIM IGMP Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Super SBM-25G-P10, New SuperBlade 20 ports pass-thru module
Starting atContact Sales
SBM-25G-200 General Specifications Broadcom BCM56770 25GbE Low Latency Switch 6x 100G/40G & 1x 1G uplinks* 40x 25Gbps downlinks (SuperBlade), 56x 25Gbps downlinks (MicroBlade) 1 Console port 1 USB port Switching Capacity 2000Gbps Physical Layer Features Jumbo frames up to 9KB 100G/40G QSF28/QSFP+ optical/copper 1G RJ-45 copper Layer 3 Features IPv4 unicast routing - static routing, RIP, OSPF and BGP IPv6 unicast routing - static routing VRRP (Virtual Router Redundancy Protocol) ECMP (Equal-cost multi-path) PIM IGMP Layer 2 Features 4K VLANS Spanning Tree (802.1D) Rapid Spanning Tree (802.1w) Multiple Spanning Trees (802.1s) IEEE 802.lQ VLANs/ port-based VLANs IEEE 802.3ad with LACP IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Super StorageBlade®(10x Nodes) E5-2600v4 Server
Starting atContact Sales
The innovative SuperBlade® offers enhanced system computing density leveraged from years of rackmount server design experience. Applying Supermicro's application-optimized engineering philosophy, each SuperBlade® module delivers true server functionality including up to four processors (in select models), optional InfiniBand mezzanine HCA, and supports either SATA or SAS hard drives. To protect customer's investment, each blade module is fully upgradeable for future CPUs. The common system architecture ensures each blade is fully inter-changeable as well.
SuperBlade 10xNodes 5thGen Scalable 6U+E3.S Server
Starting atContact Sales
SuperBlade® Highest Density x86 Multi-Node Server for Enterprise Cloud, HPC Applications: *Highlights: Available in 8U, 6U and 4U enclosures with hot-swap NVMe support, Advanced networking including NDR/HDR/EDR, InfiniBand and 25 Gigabit Ethernet, Available in air and direct liquid cooling. *Innovations: Resource Saving Architecture, Data Center Friendly Design and Features, *Optimized for: HPC, Hybrid Cloud, EDA, Virtualization, Financial Services.
SuperBlade 10xNodes 5thGen Scalable 6U+U.2 Server
Starting atContact Sales
SuperBlade® Highest Density x86 Multi-Node Server for Enterprise Cloud, HPC Applications: *Highlights: Available in 8U, 6U and 4U enclosures with hot-swap NVMe support, Advanced networking including NDR/HDR/EDR, InfiniBand and 25 Gigabit Ethernet, Available in air and direct liquid cooling. *Innovations: Resource Saving Architecture, Data Center Friendly Design and Features, *Optimized for: HPC, Hybrid Cloud, EDA, Virtualization, Financial Services.
SuperBlade 20xNodes 5thGen Scalable 8U Server
Starting atContact Sales
SuperBlade® Highest Density x86 Multi-Node Server for Enterprise Cloud, HPC Applications: *Highlights: Available in 8U, 6U and 4U enclosures with hot-swap NVMe support, Advanced networking including NDR/HDR/EDR, InfiniBand and 25 Gigabit Ethernet, Available in air and direct liquid cooling. *Innovations: Resource Saving Architecture, Data Center Friendly Design and Features, *Optimized for: HPC, Hybrid Cloud, EDA, Virtualization, Financial Services.
SuperBlade AOC-B25G-6X4D-O,Dual-port 25G Mezz Card for SuperBlade 6U Chass(Mellanox)
Starting atContact Sales
SuperBlade AOC-B25G-6X4D-O,Dual-port 25G Mezz Card for SuperBlade 6U Chass(Mellanox)
SuperBlade AOC-B25G-X4D-B, SuperBlade 2-port 25GbE Mezzanine Card
Starting atContact Sales
SuperBlade AOC-B25G-X4D-B, SuperBlade 2-port 25GbE Mezzanine Card
SuperBlade AOC-B25G-X4D-O, SuperBlade 2-port 25GbE Mezzanine Card
Starting atContact Sales
SuperBlade AOC-B25G-X4D-O, SuperBlade 2-port 25GbE Mezzanine Card
SuperBlade AOC-IBH-002 Mezzanine HCA, Single 4x DDR 20Gbps ports, SMBUS for Management
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001 and AOC-IBH-002 mezzanine cards provide this 20Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module.
SuperBlade AOC-IBH-003 Mezzanine HCA, Dual 4x DDR 20Gbps ports, Support both IB & 10G
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001 and AOC-IBH-002 mezzanine cards provide this 20Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module.
SuperBlade AOC-IBH-X4ES-O, Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4
Starting atContact Sales
SuperBlade AOC-IBH-X4ES-O, Mezzanine card, InfiniBand EDR Single Port based on ConnectX-4
SuperBlade AOC-IBH-XDD, Mezzanine HCA, Dual 4x DDR 20Gbps ports, Support both IB & 10G
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001, AOC-IBH-002, AOC-IBH-003 and AOC-IBH-XDD mezzanine cards provide this 20-Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module. The AOC-IBH-003 and AOC-IBH-XDD can alternatively be used for 10-Gbps Ethernet connectivity when used in concert with the SBM-XEM-002 10-Gbps Pass-through module.

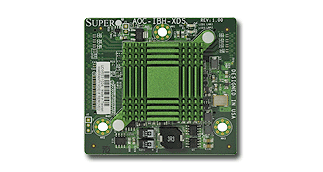

SuperBlade AOC-IBH-XDS, Mezzanine HCA, Single 4x DDR 20Gbps ports, Support both IB & 10G
Starting atContact Sales
InfiniBand Mezanine HCA Cards For any blade to access the InfiniBand module, it must have an InfiniBand mezzanine HCA card installed on its mainboard. The AOC-IBH-001, AOC-IBH-002, AOC-IBH-003 and AOC-IBH-XDD mezzanine cards provide this 20-Gbps connectivity (4x DDR) through the backplane to the InfiniBand switch module. The AOC-IBH-003 and AOC-IBH-XDD can alternatively be used for 10-Gbps Ethernet connectivity when used in concert with the SBM-XEM-002 10-Gbps Pass-through module.

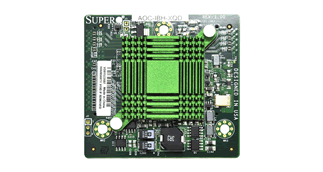

SuperBlade AOC-IBH-XQD, Mezzanine HCA, InfiniBand Two 4x QDR 40Gbps/One or Two 10-Gbps
Starting atContact Sales
SuperBlade AOC-IBH-XQD InfiniBand Two 4x QDR 40Gbps/One or Two 10-Gbps Mezzanine HCA

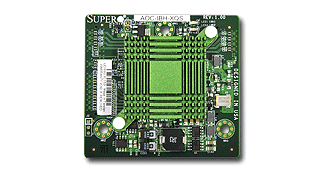

SuperBlade AOC-IBH-XQS, Mezzanine HCA, InfiniBand Single port 4x QDR 40Gbps
Starting atContact Sales
Single Port, Low Latency InfiniBand Adapter Cards For SuperBlade AOC-IBH-XQS This InfiniBand mezzanine card for the SuperBlade delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered data bases, parallelized applications, transactional services and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-IBH-XQS simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. In addition to this outstanding InfiniBand capability, the AOC-IBH-XQS can be configured alternatively as 10-Gigabit Ethernet NIC when used with the Supermicro SBM-XEM-002 10-Gigabit Pass-Through module.
SuperBlade AOC-OPH-WFR-O, Omni-path mezzanine card, 100Gbps link speed
Starting atContact Sales
SuperBlade AOC-OPH-WFR-O, Omni-path mezzanine card, 100Gbps link speed
SuperBlade AOC-XEH-B2S-O
Starting atContact Sales
SuperBlade AOC-XEH-B2S-O
