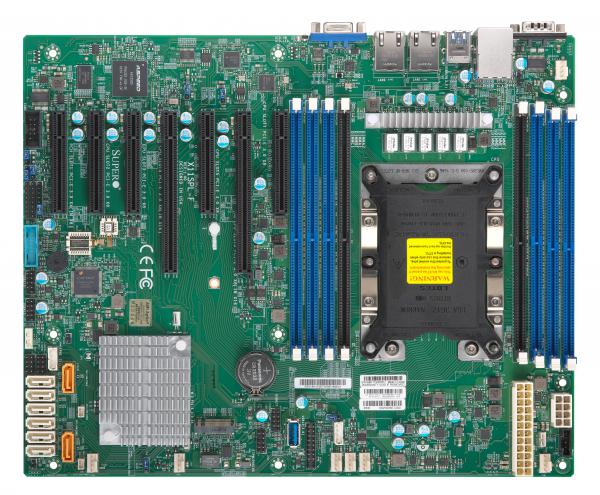

Super X11SPL-F, 1x LGA3647, 7x PCI-e, VGA, 2x 1GB/i210, 8x SATA3(C621)+R/M.2, IPMI,DDR4(1TB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W Intel® C621 Chipset Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots Expansion slots: 2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 2 GbE LAN ports 8 SATA3 (6Gbps) ports I/O: 1 VGA, 2 COM, TPM header 2 SuperDOM with built-in power 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 8 USB 2.0 (2 rear, 6 via headers) M.2 NGFF connector

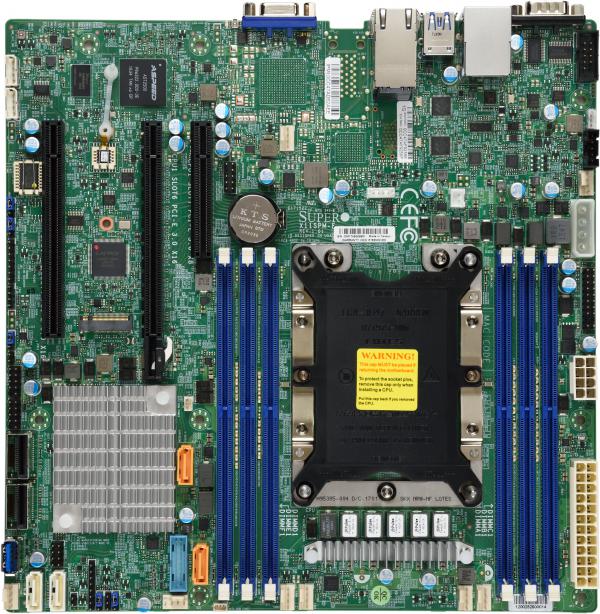

Super X11SPM-F, 1x LGA3647, 3x PCI-e, VGA, 2x 1GB/88E1512, 12x SATA3(C622)+R/M.2, IPMI, DDR4(768GB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W Intel® C621 Chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8) 2 GbE LAN ports 12 SATA3 (6Gbps) via C621 Supports 12V DC power input 4-pin Internal power connector 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers) I/O: 1 VGA, 2 COM, TPM header

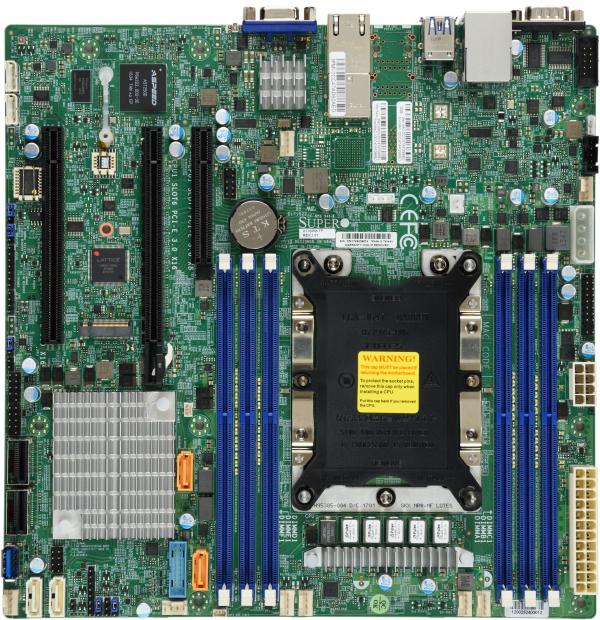

Super X11SPM-TF, 1x LGA3647, 3x PCI-e, VGA, 2x 10GB/X722, 12x SATA3(C622)+R, IPMI, DDR4(768GB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W Intel® C622 chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8) 2 10GbE LAN ports 12 SATA3 (6Gbps) via C622 Supports 12V DC power input 4-pin Internal power connector 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers) I/O: 1 VGA, 2 COM, TPM header

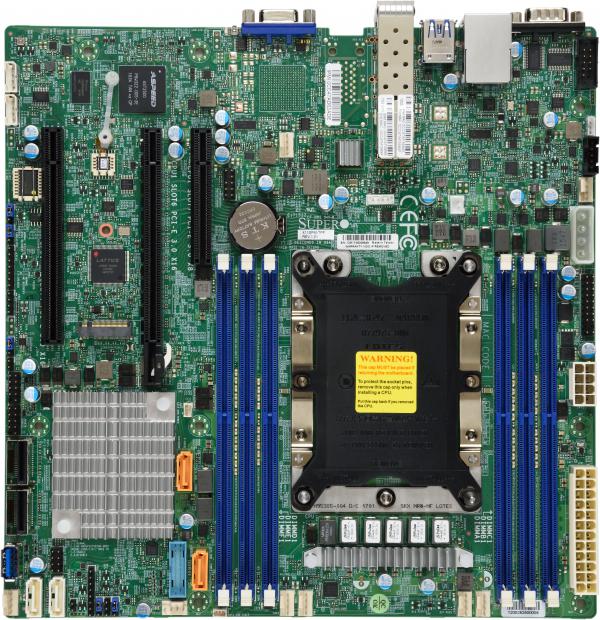

Super X11SPM-TPF, 1x LGA3647, 3x PCI-e, VGA, 2x 10GB/SFP+, 12x SATA3(C622)+R/M.2, IPMI, DDR4(768GB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W Intel® C622 chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots Expansion slots: 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8) 2 10G SFP+ 12 SATA3 (6Gbps) via C622 Supports 12V DC power input 4-pin Internal power connector 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers) I/O: 1 VGA, 2 COM, TPM header

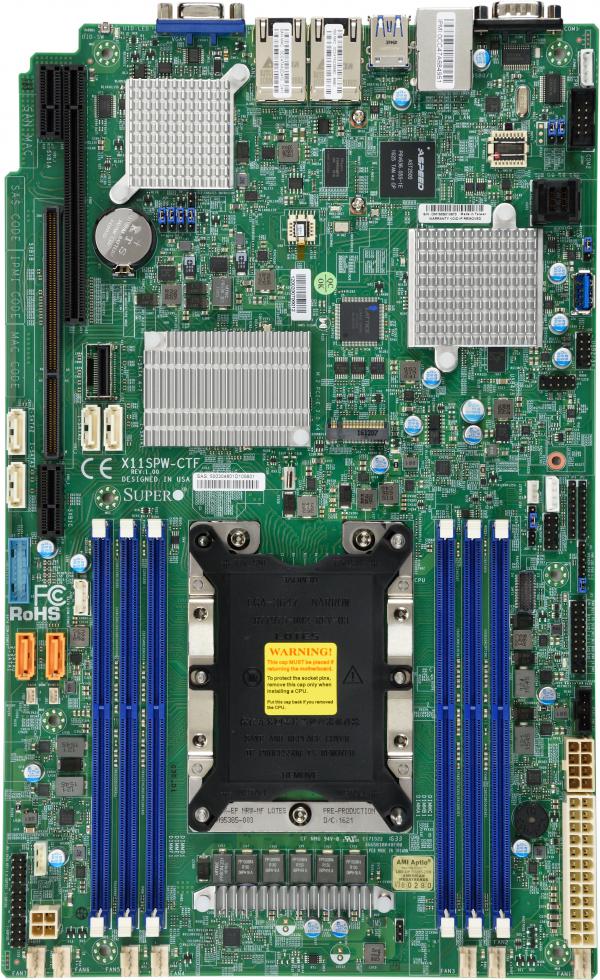

Super X11SPW-CTF,1x LGA3647,WIO,VGA,2x10GB/X722,10x SATA3+4x SAS3(3008/IT Mode)/M.2,IPMI,DDR4(768GB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W Intel® C622 chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot 4 SAS3 (12Gbps) via Broadcom 3008; RAID 0, 1, 10 2 10GbE LAN ports 10 SATA3 (6Gbps) via C622 I/O: 1 VGA, 2 COM, TPM header 2 SuperDOM with built-in power M.2 NGFF connector

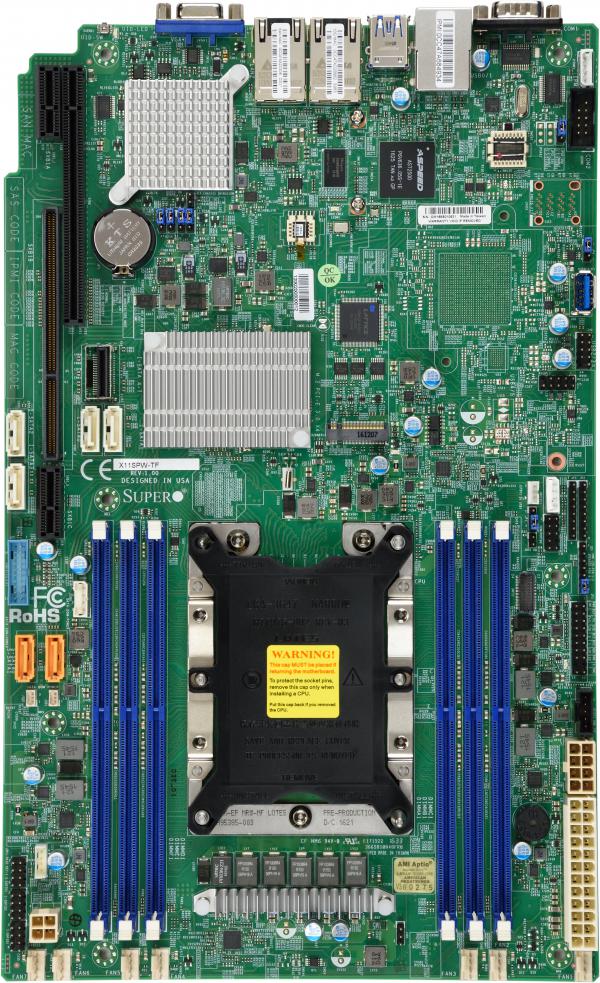

Super X11SPW-TF, 1x LGA3647, WIO, VGA, 2x 10GB/X722+X557, 10x SATA3(C622)+R/M.2, IPMI, DDR4(768GB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W Intel® C622 chipset Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x32 Left Riser slot 2 10GbE LAN ports 10 SATA3 (6Gbps) via C622 I/O: 1 VGA, 2 COM, TPM header 2 SuperDOM with built-in power M.2 NGFF connector

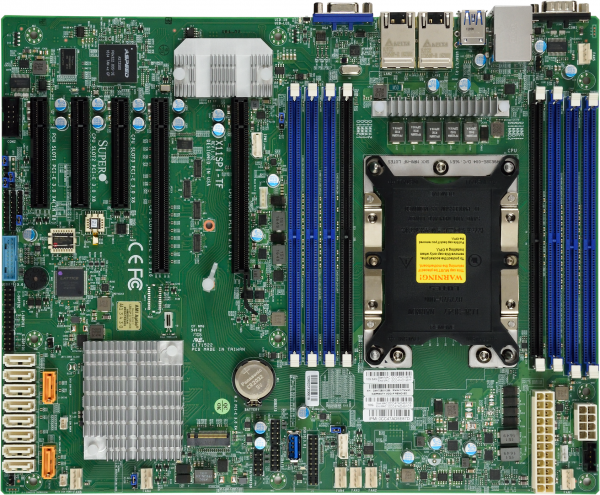

Super X11SPi-TF, 1x LGA3647, 5x PCI-e, VGA, 2x 10GB/X722+X557, 10x SATA3(C622)+R/M.2, IPMI,DDR4(1TB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W Intel® C622 chipset Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots Expansion slots: 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 (x16 || x8), 1 PCI-E 3.0 x8 (x0 || x8), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8) 2 10GbE LAN ports 10 SATA3 (6Gbps) via C622 I/O: 1 VGA, 2 COM, TPM header 2 SuperDOM with built-in power 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers) M.2 NGFF connector
Super X12SPA-TF, W-1200, 7x PCI-e, VGA, 1x 10GB+1x GB LAN, 10x SATA3(C622)+R/M.2, IPMI,DDR4(3TB)
Starting atContact Sales
Key Features Intel® Xeon® Scalable Processors, Intel® Xeon® W-32xx Processor. Single Socket LGA-3647 (Socket P) supported, CPU TDP support 205W TDP Intel® C621 Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz Or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots; Xeon-W 32xx supports up to 2TB 3DS ECC RDIMM/LRDIMM, Xeon-W 32xx supports up to 1TB 3DS RDIMM/LRDIMM. ; Xeon-W32xx series processors don't support DCPMM. 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16 slot), PCI-Ex16 Slot#1 shares with M.2, Slot#2 shares with Slot#3(NA/16,8/8), Slot#4 shares with Slot#5(NA/16,8/8), Slot#6 shares with Slot#7(NA/16,8/8) (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8) M.2 Interface: 4 PCI-E 3.0 x4, RAID 0 & 1 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: M-Key VROC key is required for Raid. 1 VGA port, VGA connector is dedicated for IPMI. Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Single LAN with Intel® Ethernet Controller I210-AT Single LAN with Aquantia® AQC107 10G Ethernet Controller Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
TYAN Tempest CX S5630 (S5630GMRE) LGA3647/ Intel C621 PCH/ DDR4/SATA3/ V/ SSI CEB Server Motherboard
Starting atContact Sales
Mfr Part Number: S5630GMRE CPU: LGA3647 Support Intel Xeon Scalable Processor Supports up to 205W TDP Chipset: Intel C621 PCH Memory: 12x DDR4 DIMM Slots, 6 Channel, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB Registered 3DS Memory/ Load Reduced 3DS Memory Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x 8 OCP 2.0 Slots (conn.A+conn.B) SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 Graphics LAN: 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 Ports (2 rear, 2 via cable,1 type A), 2x Serial Ports (1 rear, 1 header), 1x VGA Port, 1x RJ45 Dedicated Port for IPMI Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connectors Form Factor: SSI CEB, 12.0 x 10.9 inch / 305.00 x 276.86 mm RoHS Compliant
Tyan Tempest CX S5630 (S5630GMR) LGA3647/ Intel C621 PCH/ DDR4/SATA3/ V/ SSI CEB Server Motherboard
Starting atContact Sales
Mfr Part Number: S5630GMR CPU: LGA3647 Support Intel Xeon Scalable Processor Supports up to 205W TDP Chipset: Intel C621 PCH Memory: 12x DDR4-2666 DIMM Slots, 6 Channel, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB Registered 3DS Memory/ Load Reduced 3DS Memory Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x 8 OCP 2.0 Slots (conn.A+conn.B) SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 Graphics LAN: 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 Ports (2 rear, 2 via cable, 1 type A), 2x Serial Ports (1 rear, 1 header), 1x VGA Port, 1x RJ45 Dedicated for IPMI Power Connector: 1x 24pin ATX Power Connector, 1x 8pin ATX Power Connector Form Factor: SSI CEB, 12.0 x 10.9 inch / 305.00 x 276.86 mm RoHS Compliant
Tyan Tempest CX S7103 (S7103GM2NR) Dual LGA3647/ Intel C621/ DDR4/ SATA3/ V&2GbE/ EATX Server
Starting atContact Sales
Mfr Part Number: S7103GM2NR CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 12x DDR4-2666/ 2400/ 2133 DIMM Slots, 6 Channels per CPU, ECC, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory Slots: 2x PCI-Express 3.0 x 16 Slots, 5x PCI-Express 3.0 x 8 Slots SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 BMC Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers; 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 ports (2 via cable, 2 rear, 1 Type-A), 1x VGA Port, 2x RJ45 LAN Ports, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 1x 8pin Power Connector Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
Tyan Tempest CX S7103 (S7103GM2NR-2F-L2) Dual LGA3647/ Intel C622/ DDR4/ SATA3&Mini-SAS/ V&2GbE/
Starting atContact Sales
Mfr Part Number: S7103GM2NR-2F-L2 CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C622 Memory: 12x DDR4-2666/2400/2133 DIMM Slots, 6 Channels per CPU, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory Slots: 2x PCI-Express 3.0 x 16 Slots, 5x PCI-Express 3.0 x 8 Slots SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 SAS: 3x Mini-SAS Connectors (support 12 ports), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 BMC Graphics LAN: Intel I350-AM2 and Intel C622 PCH 10GbE SFP+ Ethernet Ports; 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 ports (2 via cable, 2 at rear, 1 Type-A), 1x VGA Port, 2x 10GbE SFP+ LAN Ports, 1x Dedicated IPMI RJ45 LAN Port Power Connector: 1x 24pin Power Connector, 1x 8pin Power Connector Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
Tyan Tempest CX S7103 (S7103WGM2NR-2F-L2) Dual LGA3647/ Intel C622/ DDR4/ SATA3&Mini-SAS/ V/ EATX
Starting atContact Sales
Mfr Part Number: S7103WGM2NR-2F-L2 CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/ 9.6 GT/s Up to 205W TDP Chipset: Intel C622 Memory: 12x DDR4-2666/ 2400/ 2133 DIMM Slots, 6 Channels per CPU, ECC, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory Slots: 2x PCI-Express 3.0 x16 Slots, 5x PCI-Express 3.0 x8 Slots SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 SAS: 8x Mini-SAS Ports, Support RAID 0, 1, 10 Video: Aspeed AST2500 Graphics LAN: 2x 10GBase-SFP+ Ethernet Ports, 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 Ports (2 rear, 2 via cable, 1 Type-A), 1x VGA Port, 2x 10GbE SFP+ LAN Ports, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 1x 8pin Power Connector Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
Tyan Tempest CX S7103 (S7103WGM4NR-2F-L2) Dual LGA3647/ Intel C622/ DDR4/ SATA3&Mini-SAS/ V&2GbE/
Starting atContact Sales
Mfr Part Number: S7103WGM4NR-2F-L2 CPU: Dual LGA3647 Support Intel Xeon Scalable Processor up to 10.4/ 9.6 GT/s up to 205W TDP Chipset: Intel C622 Memory: 12x DDR4-2666/ 2400/ 2133 DIMM Slots, 6 Channels per CPU, ECC, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory Slots: 2x PCI-Express 3.0 x16 Slots, 5x PCI-Express 3.0 x8 Slots SATA: 14x SATA3 Ports(12 via Mini-SAS), Support RAID 0, 1, 5, 10 SAS: 8x Mini-SAS Connectors, Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers, 2x 10GbE SFP+ Gigabit Ethernet Controller, 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 Ports (2 rear, 2 via cable, 1 Type-A), 1x VGA Port, 2x RJ45 LAN Ports, 2x 10GbE SFP+ LAN Ports, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 1x 8pin Power Connector Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
Tyan Tempest CX S7106 (S7106GM2NR) Dual LGA3647/ Intel C621/ DDR4/ SATA3&M.2/ V&2GbE/ EATX Server
Starting atContact Sales
Mfr Part Number: S7106GM2NR CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 16x DDR4-2666 DIMM Slots, 6 Channels per CPU, Supports up to 512GB Registered Memory or 1024GB Load Reduced Memory or 768GB Load Reduced 3DS Memory Slots: 2x PCI-Express 3.0 x24 Slots, 2x PCI-Express 3.0 x16 OCP 2.0 Slots (conn.A+conn.B) Storage: SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 M.2: 1x M.2 Port, supports type 2280/2260/2242 by PCI-E interface Video: Aspeed AST2500 BMC Graphics LAN: 2x Intel I210-AT Gigabit Ethernet Controllers; 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 5x USB 3.0 ports (2 via cable, 2 rear, 1 Type-A), 2x USB 2.0 ports (rear), 2x VGA Port (1 via cable, 1 rear), 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: EATX, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
Tyan Tempest EX S7100-EX (S7100AGM2NR-EX) Dual LGA3647/ Intel C621/ DDR4/ SATA3&Mini-SAS&USB3.0/ M.2
Starting atContact Sales
Mfr Part Number: S7100AGM2NR-EX CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 12x DDR4 DIMM Slots, 6 Channels per CPU, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB RDIMM 3DS/LRDIMM 3DS Slots: 4x PCI-Express 3.0 x 16 Slots, 3x PCI-Express 3.0 x 8 Slots Storage: SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 M.2: 2x M.2 Ports, one supports type 2242 (by PCI-E interface), one supports type 2280/2260/2242 (by PCI-E interface) SAS: 3x Mini-SAS Connectors (totally support 12 ports), Support RAID 0, 1, 5, 10 Audio: Realtek ALC892-GR 7.1 Channel HD Audio Video: Aspeed AST2500 BMC Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers Ports: 6x USB 3.0 ports (4 at rear, 2 via cable), 3x USB 2.0 ports (2 via cable, 1 Type-A), 1x VGA Port, 2x RJ45 LAN Ports Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: SSI EEB, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
Tyan Tempest HX S7100 (S7100GM2NR) Dual LGA3647/ Intel C621/ DDR4/ SATA3&M.2/ V&2GbE/ SSI EEB Server
Starting atContact Sales
Mfr Part Number: S7100GM2NR CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 12x DDR4-2666 DIMM Slots, 6 Channels per CPU, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB RDIMM 3DS/LRDIMM 3DS Slots: 4x PCI-Express 3.0 x 16 Slots, 3x PCI-Express 3.0 x 8 slots Storage: SATA: 14x SATA3 Ports (12 via Mini-SAS), Support RAID 0, 1, 5, 10 M.2: 2x M.2 Ports, one supports type 2242 (by PCI-E interface), one supports type 2280/2260/2242 (by PCI-E interface) Video: Aspeed AST2500 BMC Graphics LAN: 2x Intel I350-AM2 Gigabit Ethernet Controllers (1 port shared with IPMI) Ports: 6x USB 3.0 ports (2 via cable, 4 rear), 3x USB 2.0 ports (2 via cable, 1 Type-A), 1x VGA Port, 2x RJ45 LAN Ports Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: SSI EEB, 12.0 x 13.0 inch / 305.0 x 330.0 mm RoHS Compliant
Tyan Tempest HX S7105 (S7105AGM2NR-2T) Dual LGA3647/ Intel C621/ DDR4/ SATA3&Mini-SAS&M.2/ V&2GbE/ P
Starting atContact Sales
Mfr Part Number: S7105AGM2NR-2T CPU: Dual LGA3647 Support Intel Xeon Scalable Processor Up to 10.4/9.6 GT/s Supports up to 205W TDP Chipset: Intel C621 Memory: 12x DDR4-2666 DIMM Slots, 6 Channels per CPU, Supports up to 384GB Registered Memory or 768GB Load Reduced Memory or 1536GB 3DS Registered Memory/ 3DS Load Reduced Memory Slots: 1x PCI-Express 3.0 x16 Slot, 5x PCI-Express 3.0 x 16 Slots Storage: �??SATA: 10x SATA3 Ports (8 via Mini-SAS), Support RAID 0, 1, 5, 10 M.2: 2x NVMe M.2 slots, Support 22110/2280 (by PCI-E & SATA interface) SAS: 2x Mini-SAS Connectors (8-ports), Support RAID 0, 1, 5, 10 Video: Aspeed AST2500 Graphics LAN: 2x Intel X550-AT2 10GbE Ethernet Ports; 1x Realtek RTL 8211E PHY Dedicated IPMI LAN Ports: 3x USB 3.0 ports (2 at rear, 1 Type-A), 1x VGA Port, 2x RJ45 10GbE LAN Port, 1x Dedicated for IPMI Power Connector: 1x 24pin Power Connector, 2x 8pin Power Connectors Form Factor: Proprietary, 14.2 x 13.2 inch / 361.5 x 336.2 mm RoHS Compliant
